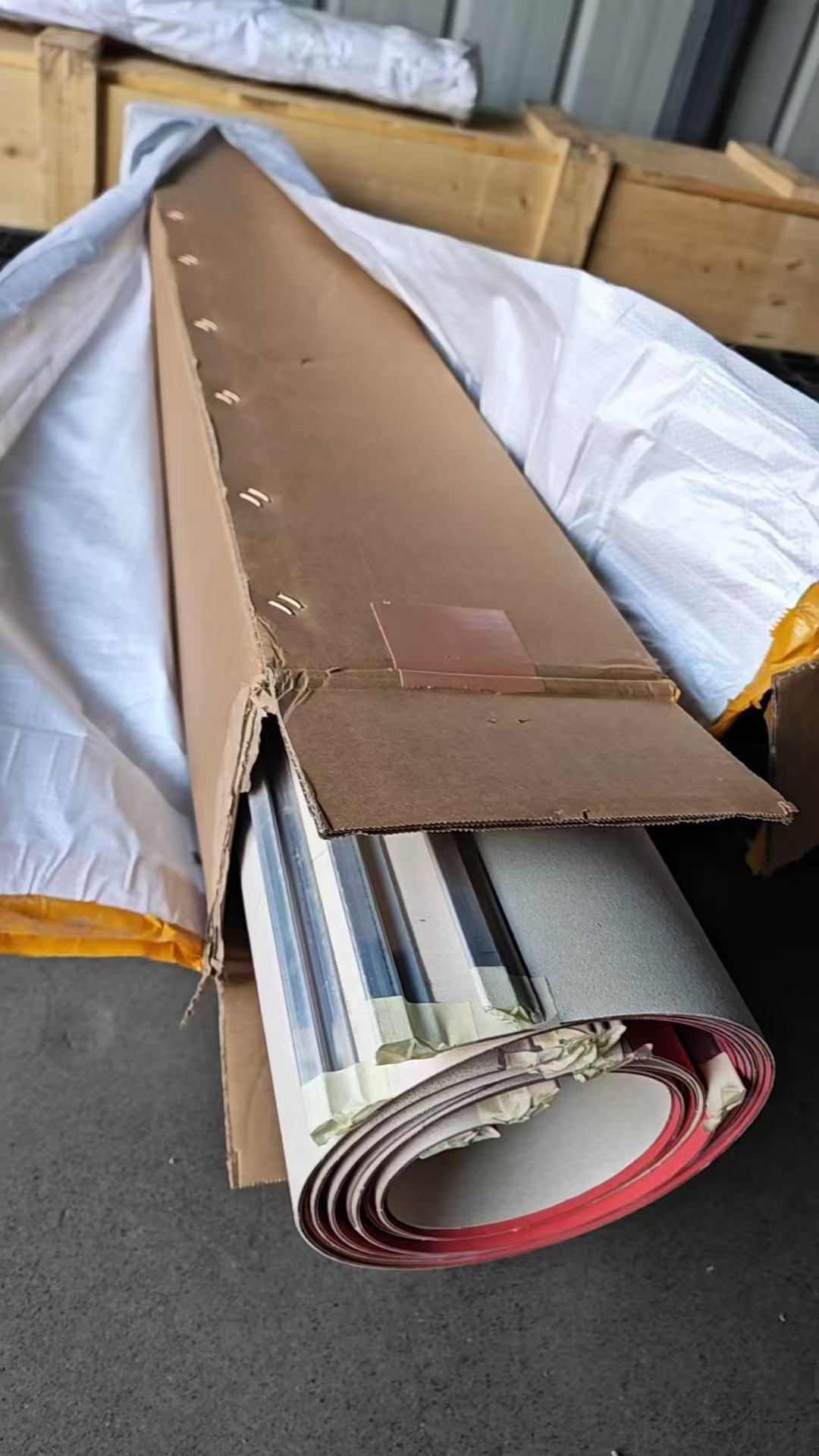

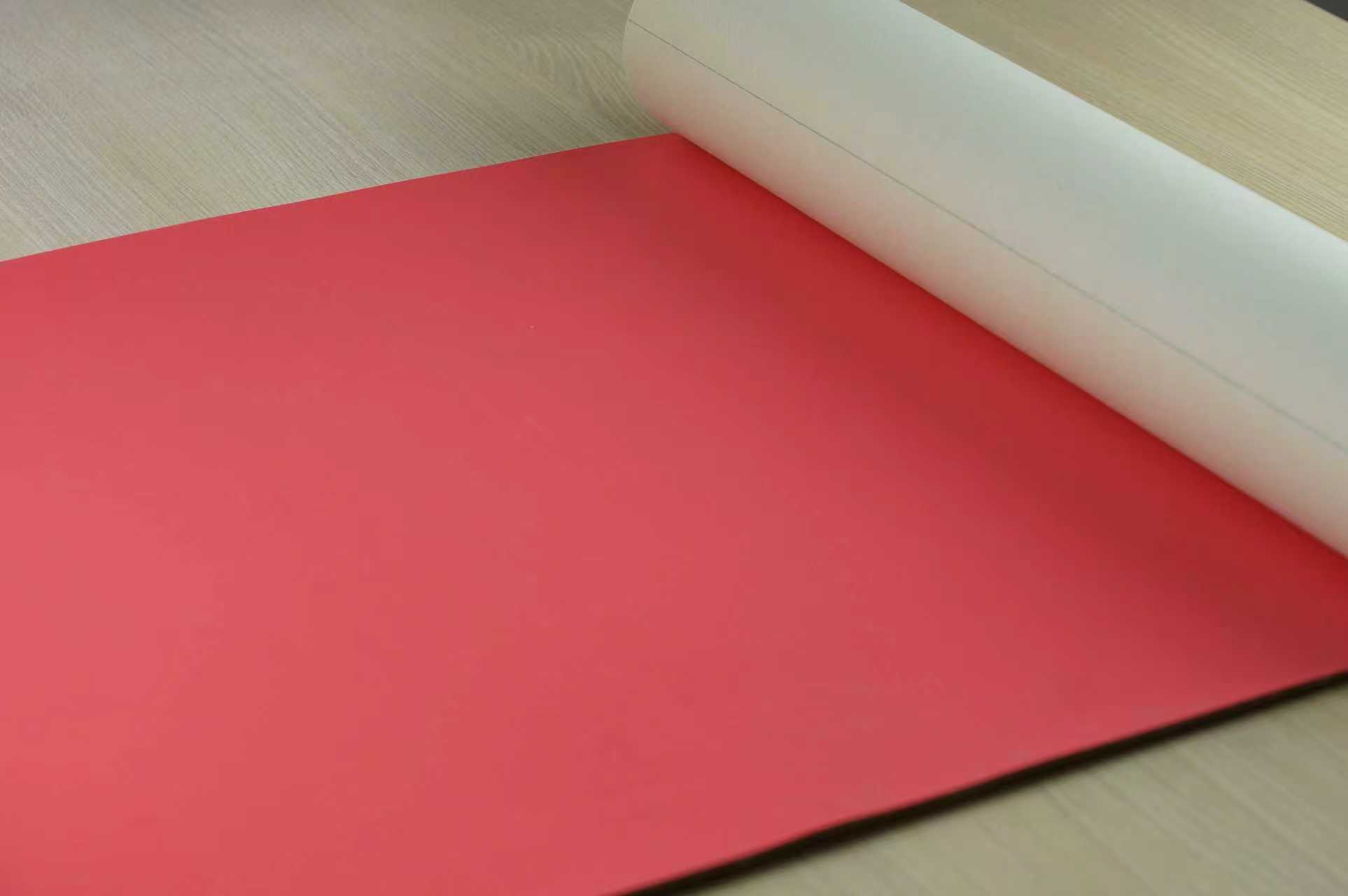

UV / LED Printing Blankets

Designed for sheet-fed metal offset printing with UV and LED inks. Delivers excellent ink transfer, precise dot reproduction and consistent print quality throughout long production runs.

Printing Process

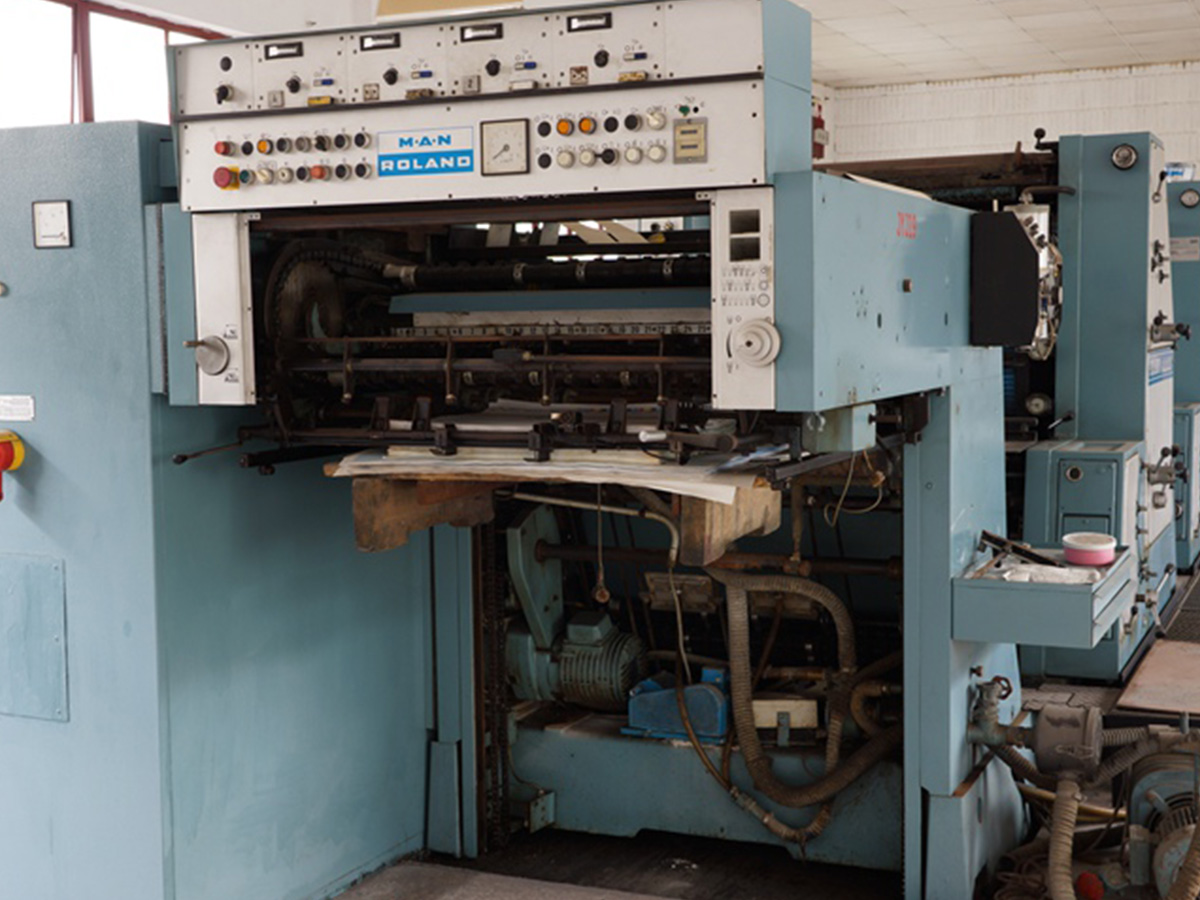

Sheet-fed Metal Offset Printing

Ink Compatibility
UV / LED Inks

Compatible Curing System
UV / LED Curing Systems

Suitable Substrates
Tinplate / ECCS (TFS) / Aluminium

Available Color
Red

库存： 0

Inquire Now

Product Overview

Printing Characteristics

Main Application

Technical Specification

Material Structure

Product Overview

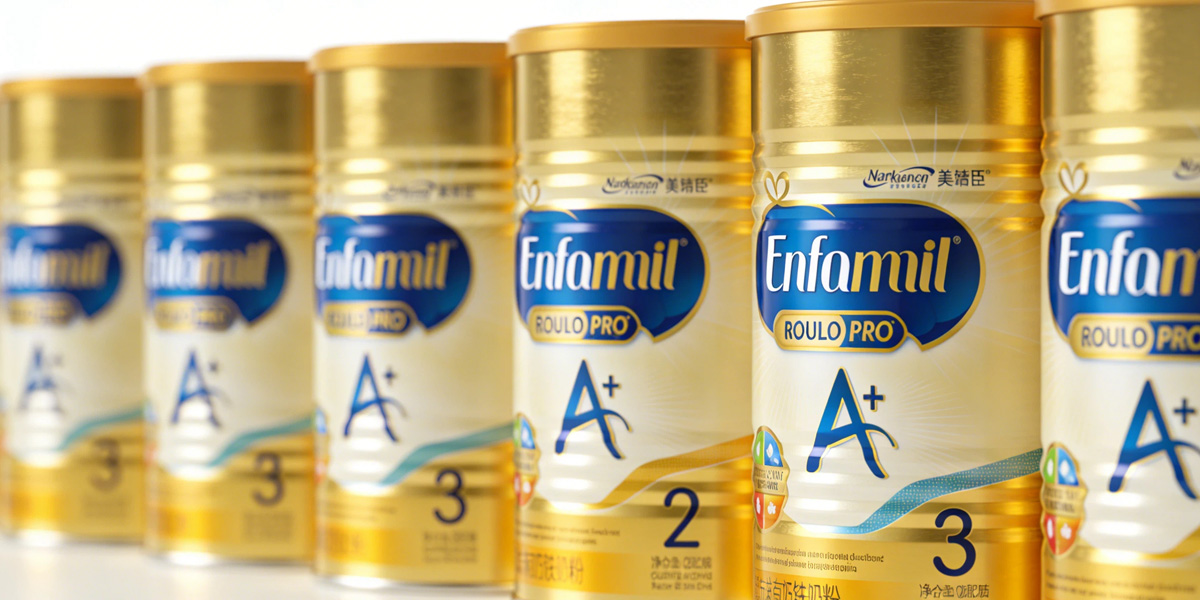

Formed from a single piece of metal (usually aluminum or tinplate) using a deep drawing process to create the body and bottom as one piece, then adding the end. Printing is done before forming.

Optimized for Pre-Forming Printing

Specifically designed for printing on flat aluminum or tinplate sheets before the deep drawing process forms the can body and bottom as one integrated piece.

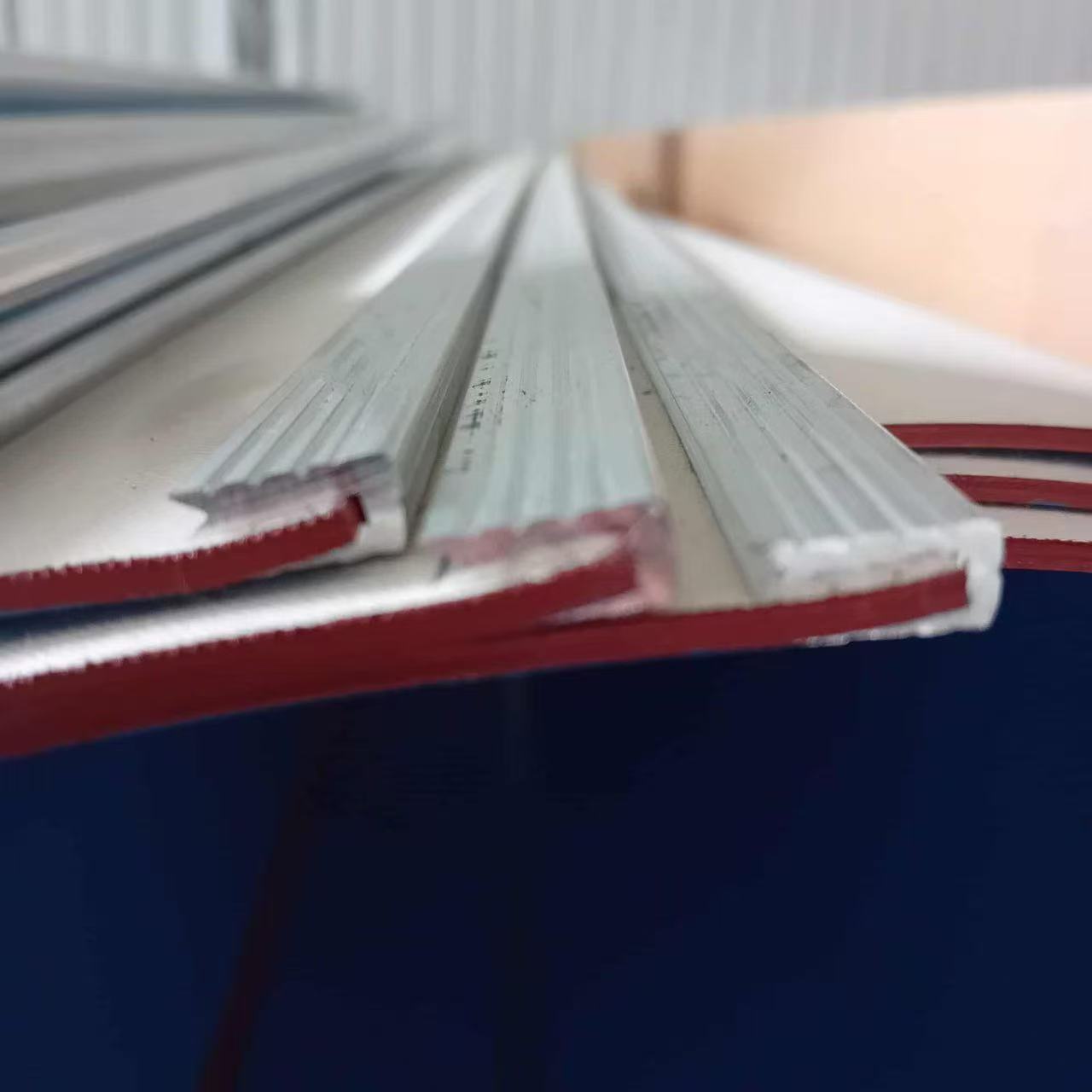

High-Strength Metal Reinforcement

Multi-layer construction ensures excellent dimensional stability, preventing stretching or distortion during high-speed metal decorating.

Precision Compressible Layer

Engineered compressible layer provides uniform pressure distribution, ensuring consistent ink transfer prior to forming and maintaining image integrity after deep drawing.

Abrasion-Resistant Surface Compound

Durable elastomer surface withstands continuous contact with metal sheets, reducing wear and extending service life in demanding can-printing environments.

Printing Characteristics

Ideal for UV ink. UV solidification and ultraviolet ray resistant

Great versatile propriety to print in packaging industry

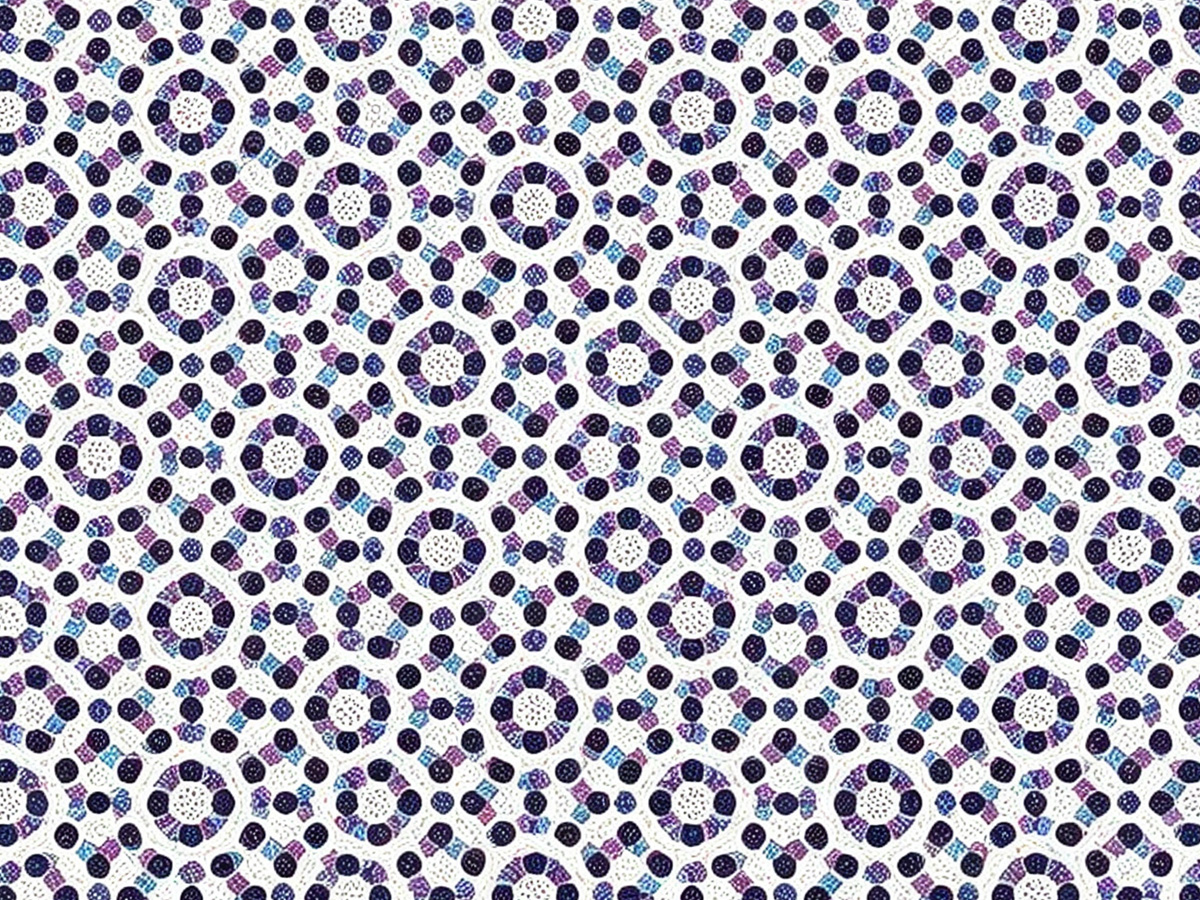

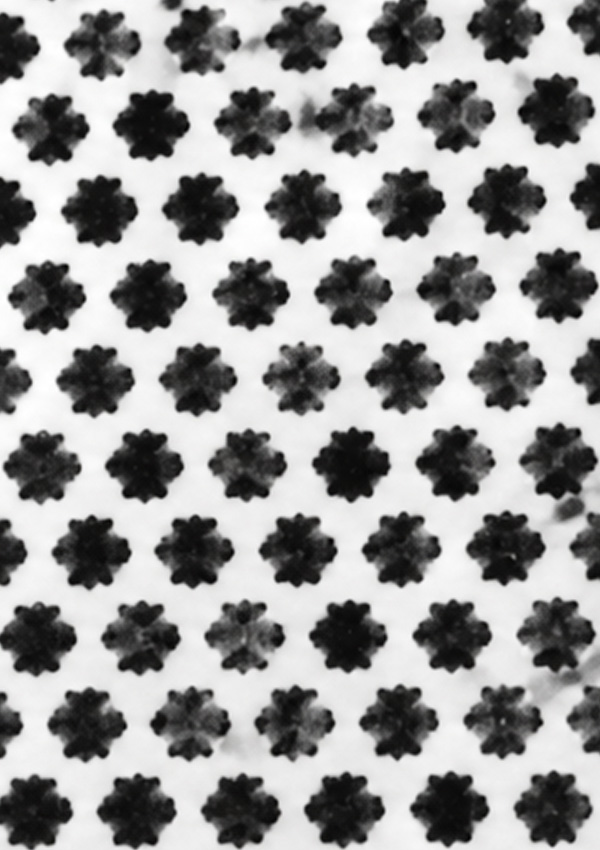

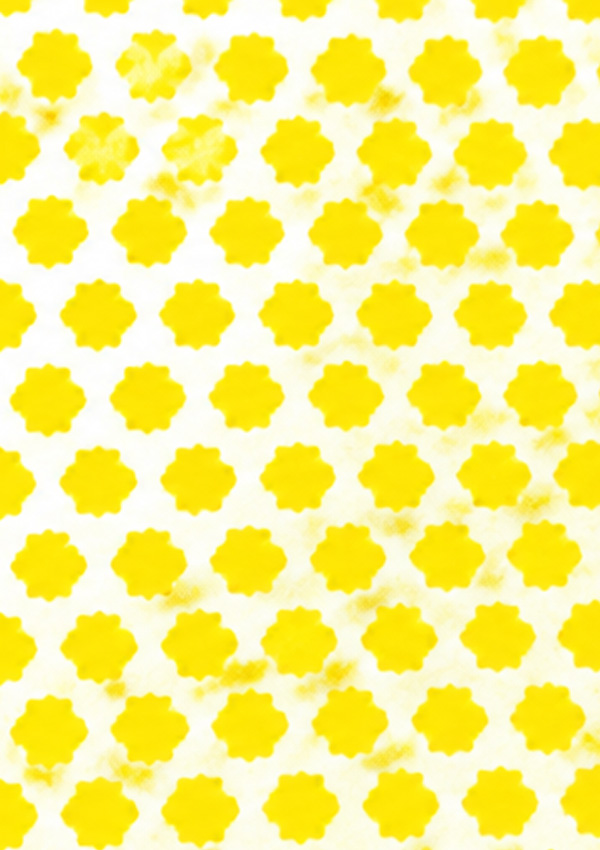

Perfect dot shape as well as reduced dot gain ensures good impression

Main Application

Technical Specification

Item	Value
Construction	4/3 plies fabric
Type	Microsphere
Surface	Micro-ground
Roughness	0.6 µm
Hardness	78-80 shore A
Elongation	≤0.9% at 500 N/5cm
Colour	Red
Gauges	1.96 / 1.70 mm

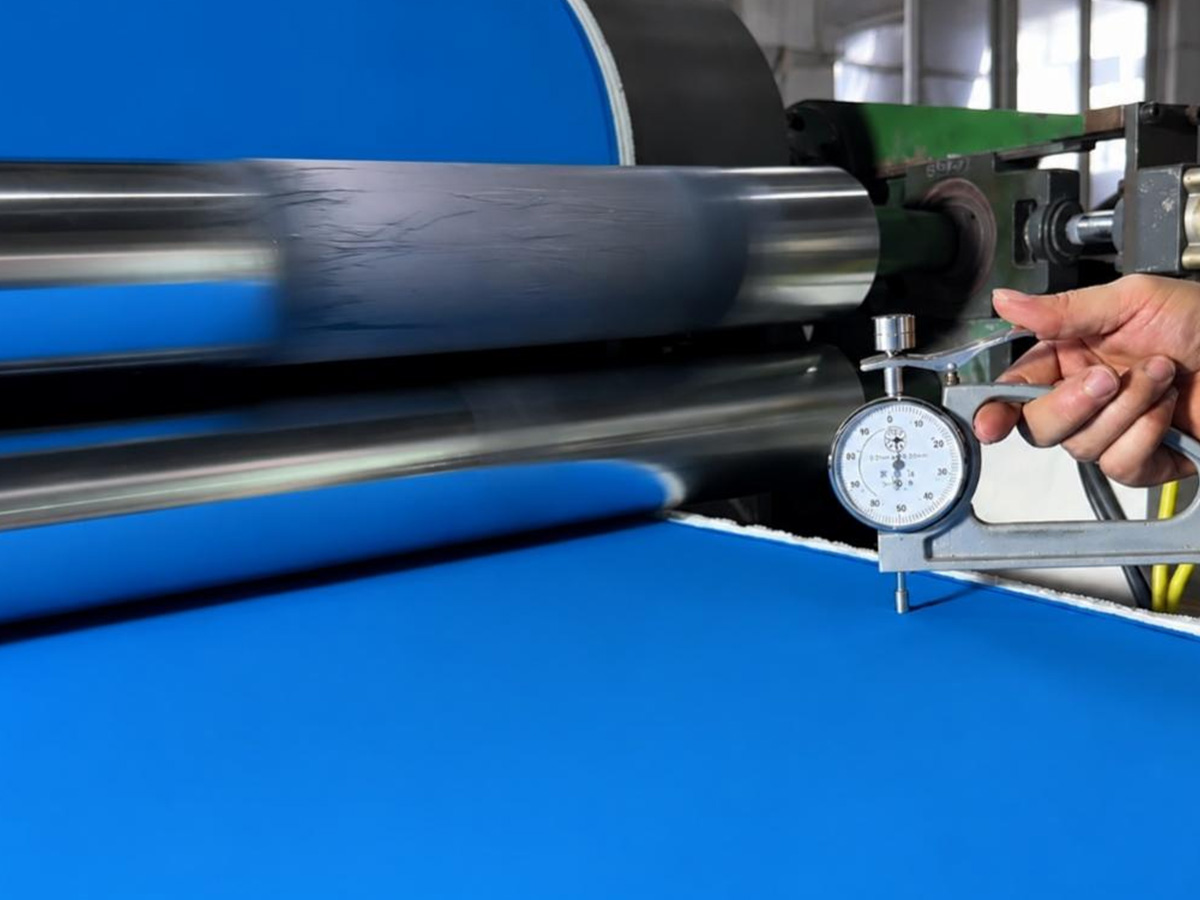

Thickness tolerance	±0.02 mm

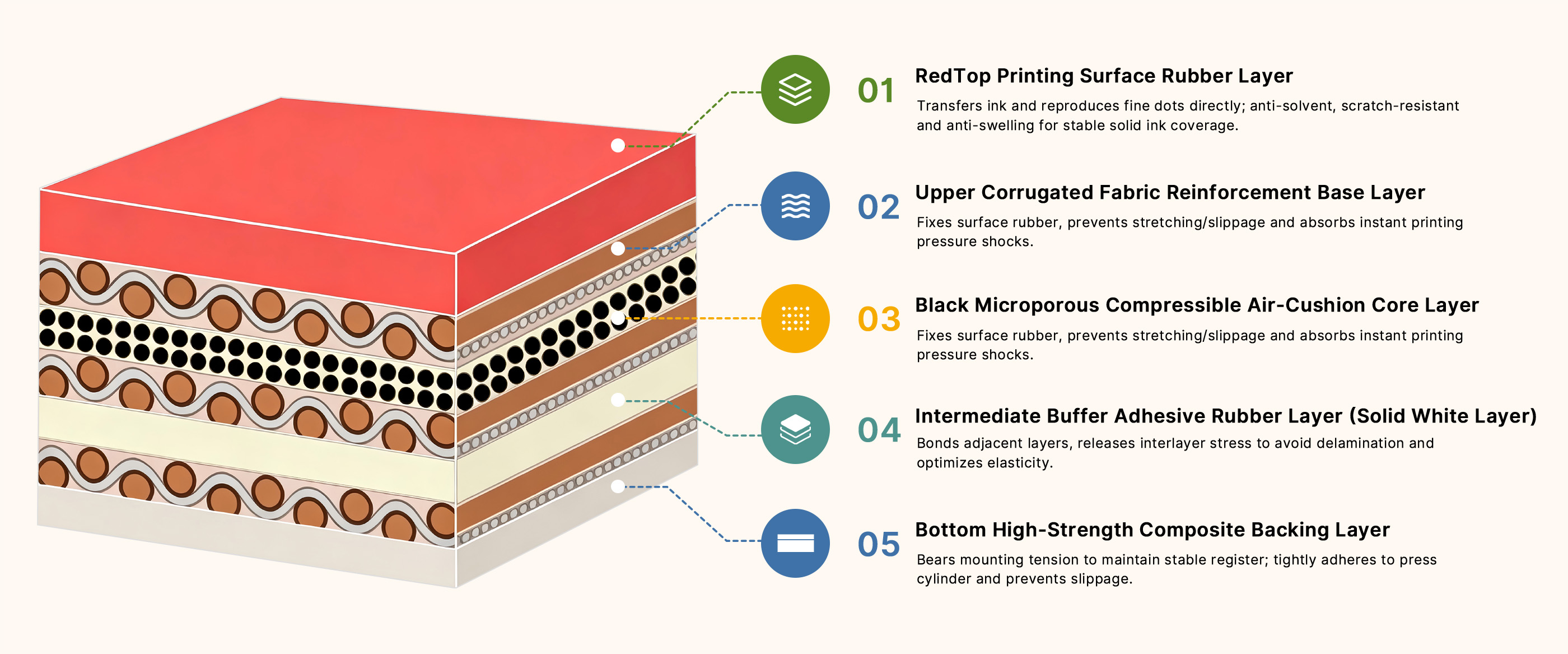

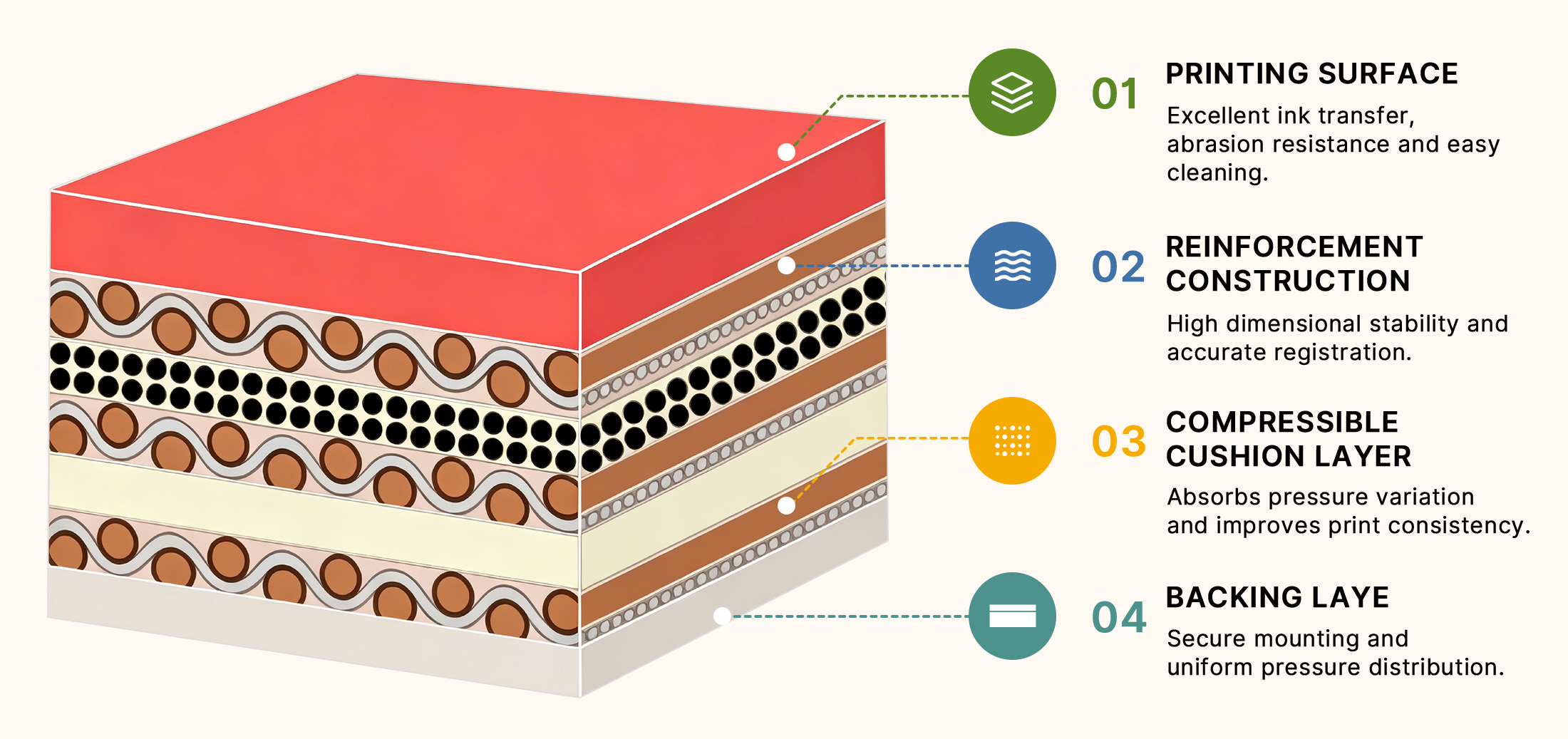

Material Structure
