Two-Piece Can Production line for Metal Packing Applications

High speed · Stable forming · Flexible formats
• Up to 1200 cans/min
• Flexible can sizes & formats
• Reliable long-term operation

Equipment Overview

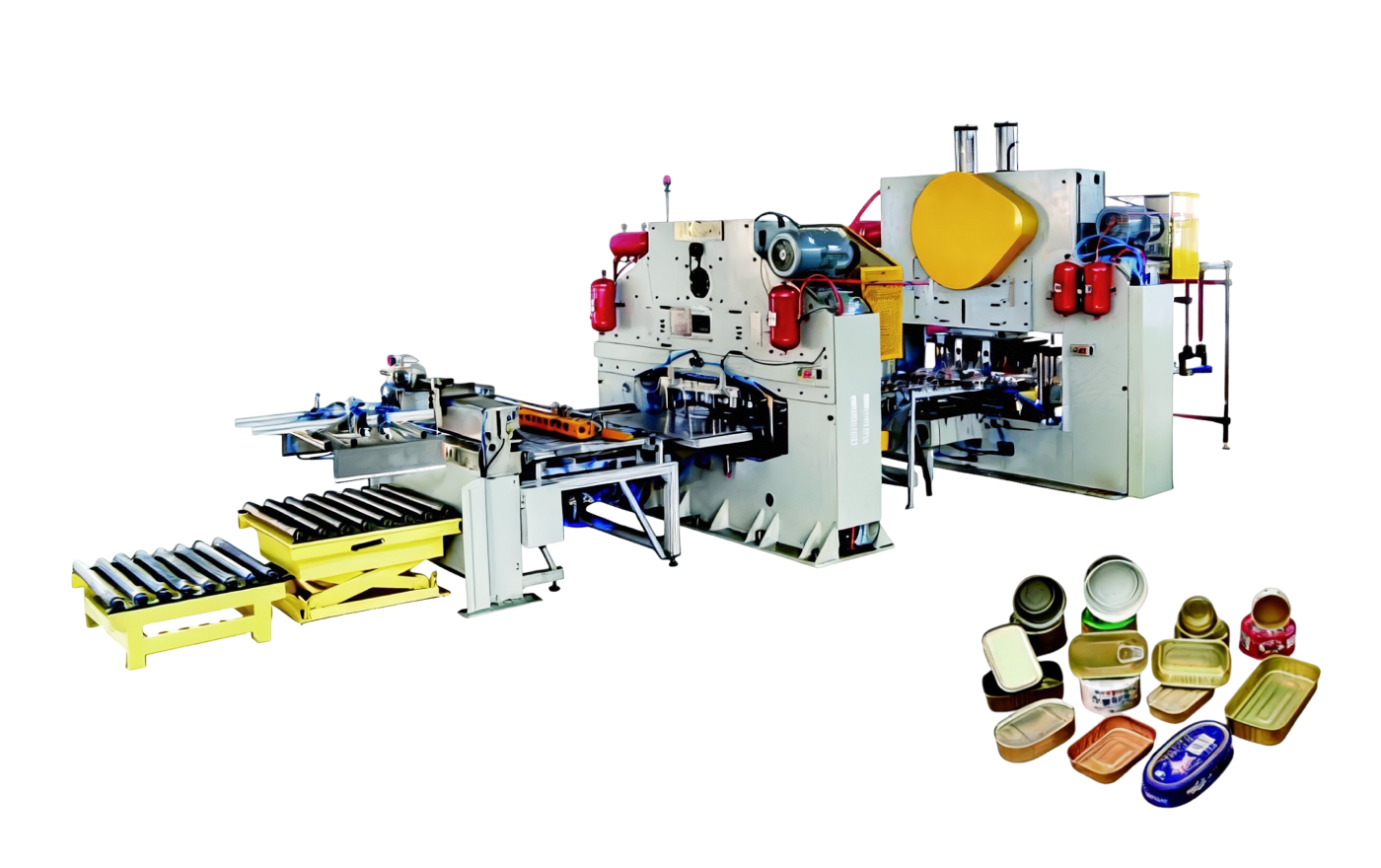

Integrated Two-Piece Can Manufacturing Solution

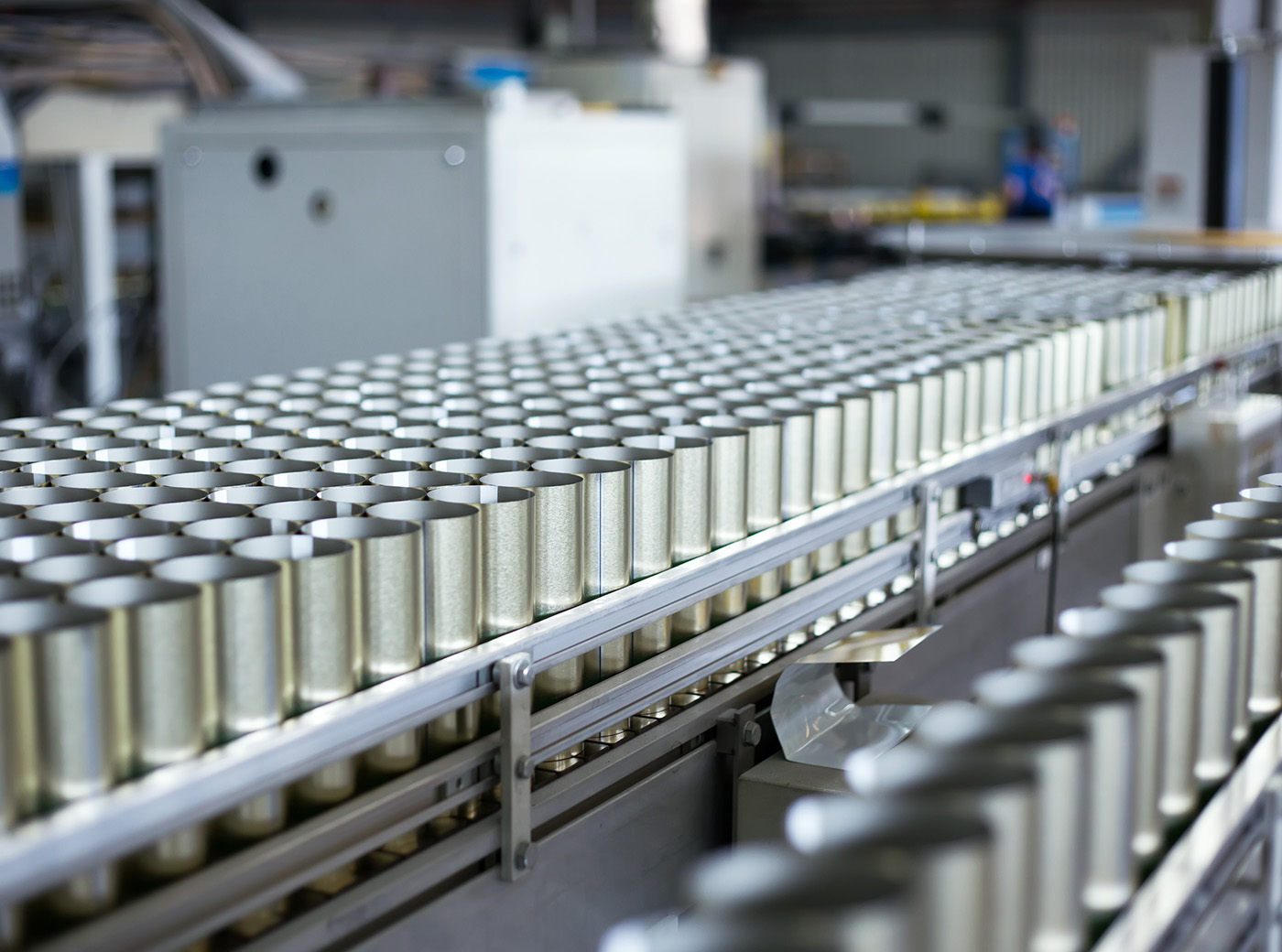

This production line converts tinplate or TFS coils into finished two-piece can bodies and lids through a continuous, PLC-controlled process.

All key processes—including forming, washing, coating, curing, inspection, and packing—are integrated in one line to ensure stable performance, consistent quality, and efficient production.

Key Features

Designed for high-volume output
Supports BPA-NI coating applications
Flexible for various can sizes and formats

Up to 1200 Cans/min

Proven high-speed production with stable performance

01 02 03 04 05

Key

Advantages

Flexible Can Sizes & Formats

Supports round, oval and shaped cans with modular design

Flexible Line Configuration

Easily expandable and customizable layout

Maximized Material Efficiency

Reduce waste and lower production cost

Fully Automated Operation

PLC-controlled system for consistent quality

Process Flow

Complete Two-Piece Can Manufacturing Solution: From can body forming to end (lid) production

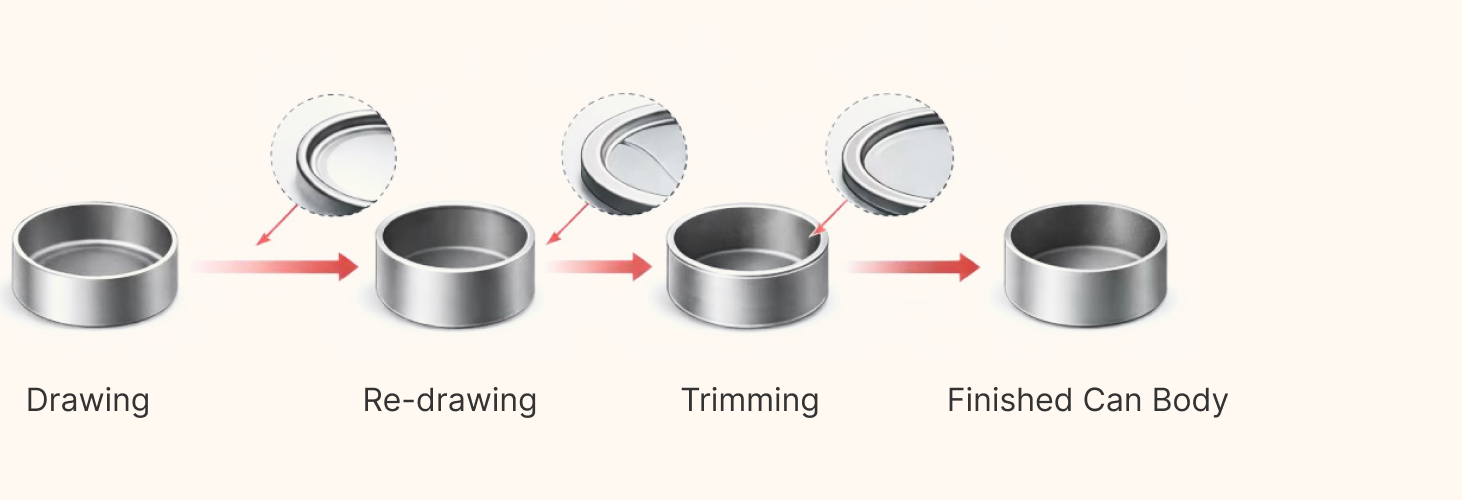

Can Body Manufacturing Process:

Drawing → Re-drawing → Trimming → Finished Can Body

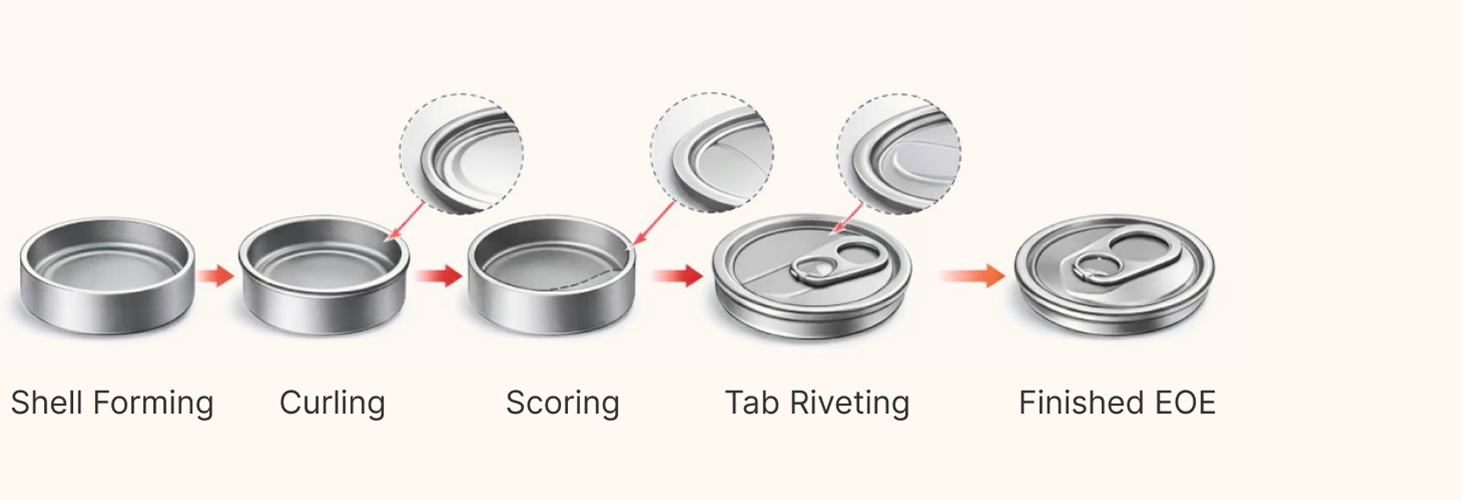

Can End(Lid) Manufacturing Process:

Shell Forming → Curling → Scoring → Tab Riveting → Finished Easy-Open End

Note: The EOE manufacturing line is available as an optional module and can be supplied as a standalone unit or fully integrated upon request.

Available As A Fully Integrated Line Or Modular Configuration

Based On Customer Requirements

Technical Specifications

Item	Specification
Production speed	200–1200 cans/min (size & configuration dependent)
Material	Tinplate (ETP) / TFS
Typical thickness	0.17–0.20 mm
Can diameter	Ø52–Ø99 mm
Can height	<60 mm
Shapes	Round / Oval / Rectangular / Shallow bowl
Control system	PLC + HMI, recipe management
Feeding accuracy	±0.10 mm (typical)

Coating & Compliance

Designed for Food-Grade Coating Systems
Compatible with BPA-NI polyester & acrylic systems

Optional epoxy-phenolic systems for high-sulfur products

Compliance standards include:

FDA 21 CFR 175.300

EU 1935/2004 & 2023/2006 (GMP)
Applicable GB 4806 Requirements

(Final compliance subject to coating supplier and customer validation)

Applications

Pet Food Cans
Meat & Ready Meals
Shallow Food Cans
Confectionery & Gift Tins
Specialty Metal Packaging

Modular & Optional Configurations

Modular design allows customers to start with a basic configuration and upgrade capacity or functionality later.

Optional Modules for Can Body Line

Multi-station drawing tooling (1–5 stations)
Advanced internal spray system
Enhanced leak detection system
High-corrosion resistant coating configuration

Optional Modules for End Making & Conversion

Automatic gantry punch press
Rotary lining machine

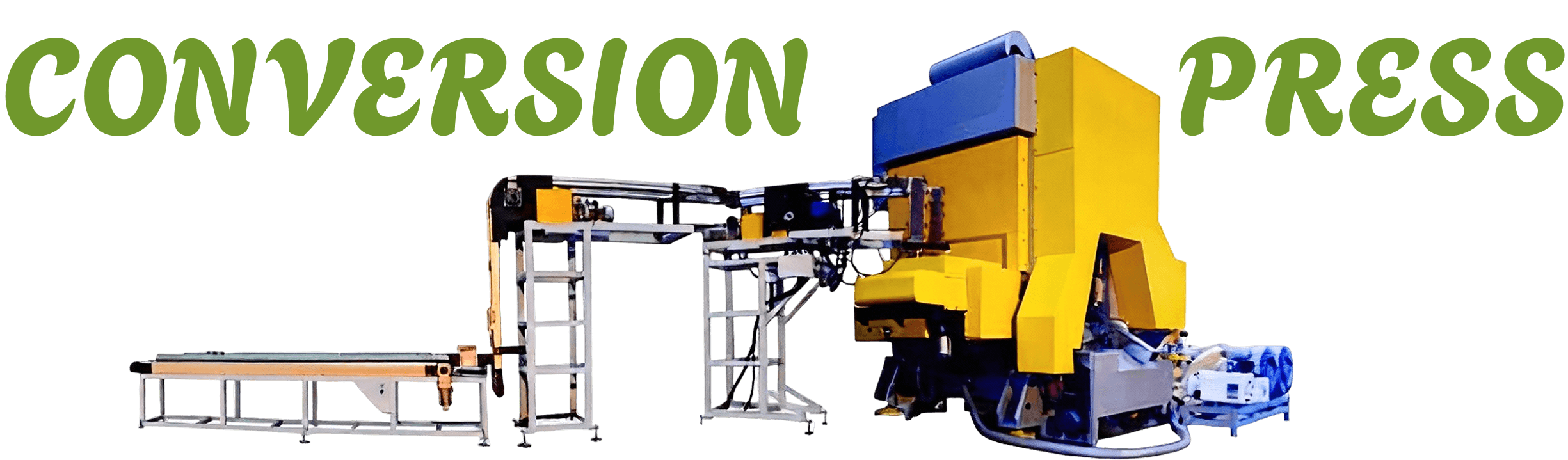

Conversion press (MINSTER / INGYU or equivalent)
Repair coating and curing system

Why Choose H&Z Machinery

High productivity with stable long-term operation

Flexible configurations for different markets

Lower investment vs European full-line systems

Reliable service & spare parts support

For detailed inquiries regarding sales, support, or corporate matters, please complete the form below. This ensures your message is directe d to the right team for a prompt and accurate response.

Key Equipment

Optional Configurations Available

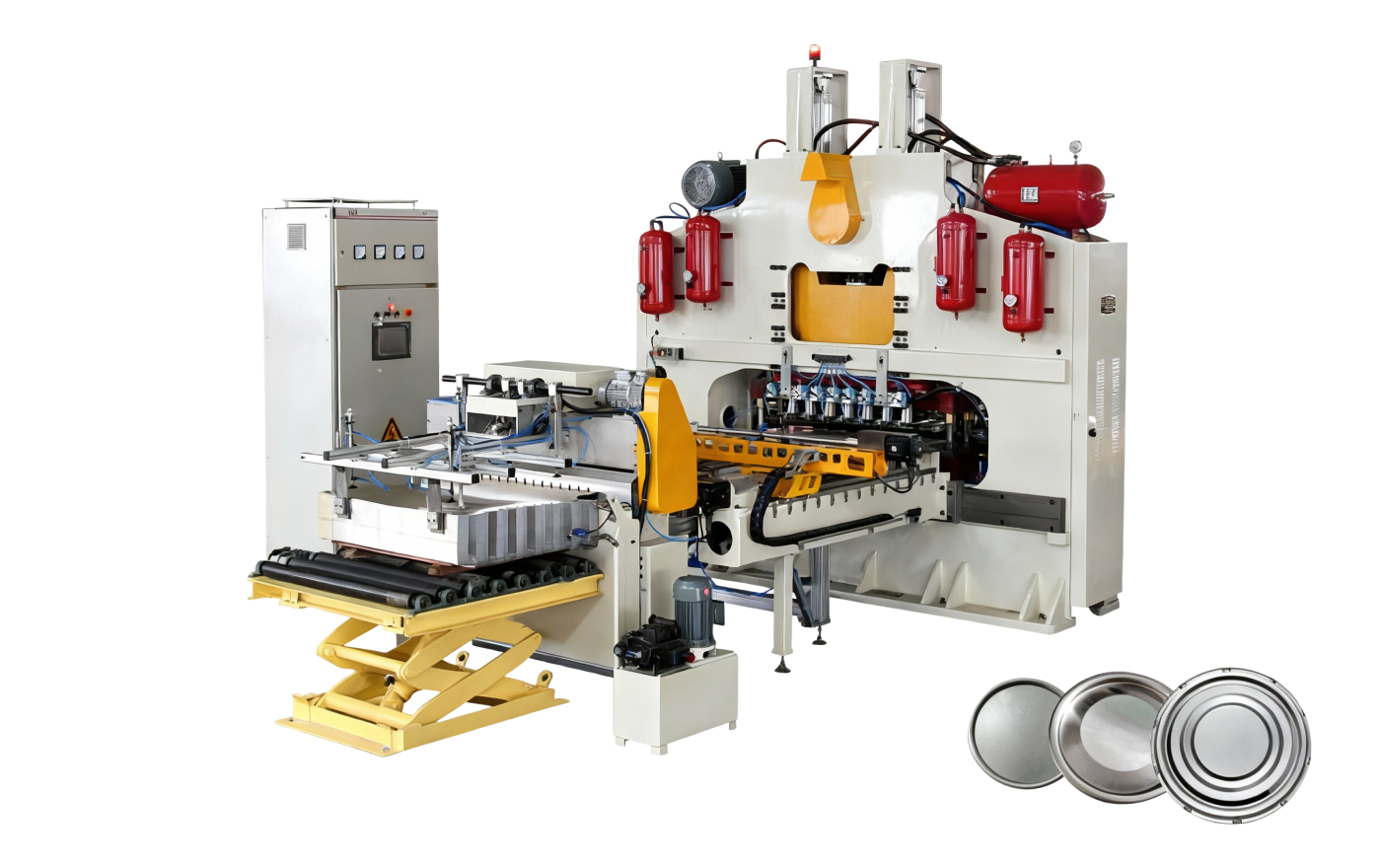

Automatic Gantry Punch Presses

Special-shaped Adhesive Drying Machine

Uncoiling machine

Combined punching machine
