High precision · Stable cutting · Flexible formats • Up to high-speed continuous processing • Flexible sheet sizes & slitting formats • Reliable long-term operation
Equipment Overview

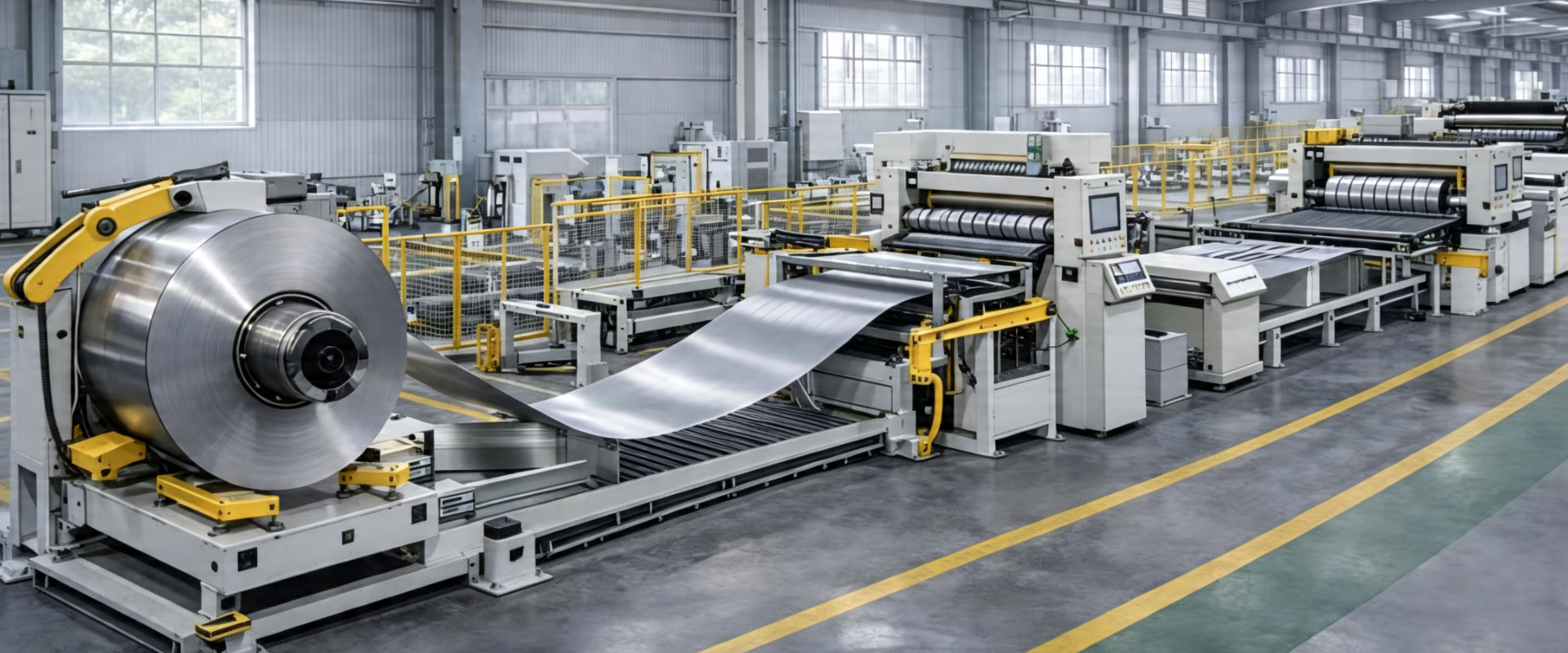

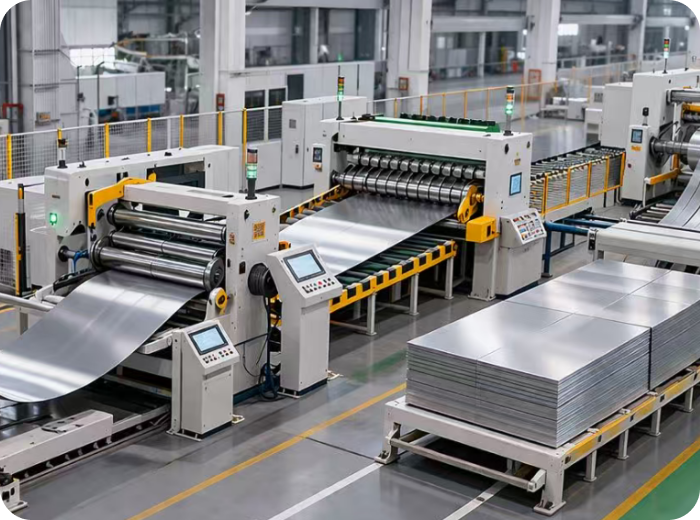

Integrated Coil Cutting & Slitting Solution This production line processes metal coils into precision sheets or slit strips through a continuous, PLC-controlled operation.
All key processes—including uncoiling, leveling, cutting or slitting, and stacking are integrated into one line to ensure stable performance, consistent quality, and efficient production.
Key Features
Designed for high-precision cutting performance Supports various coil materials and thicknesses Flexible for different sheet sizes and slitting formats
Optimized Material Utilization
Clean cutting edges and stable tension control help maximize raw material utilization.
0102030405
Key
Advantages
Consistent Output Quality

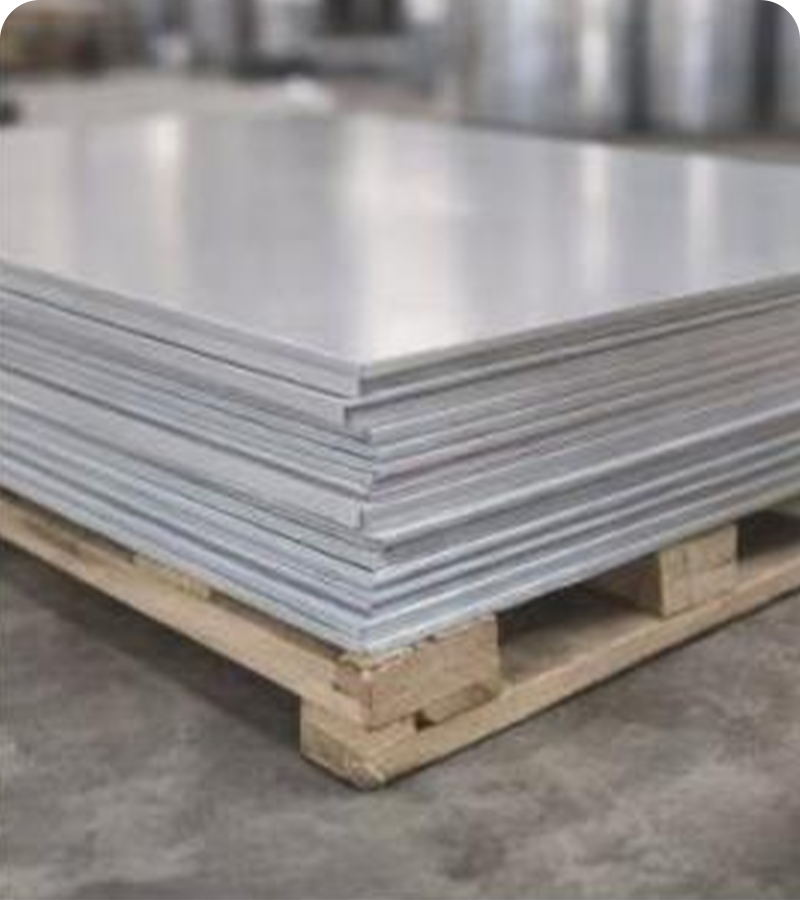

Flat, high-precision sheets or strips ready for printing, can-making, or further processing.
Adaptable to Diverse Production Needs
Easily adapts to various materials, thicknesses, and changing production requirements.
High Production Efficiency
Engineered for continuous 24/7 operation in demanding production environments.
Reduced Operating Costs
Optimized system design reduces material waste, energy consumption, and overall operating costs.
Which Line Fits Your Production Needs?
Compare cutting methods and choose the right solution for your application.

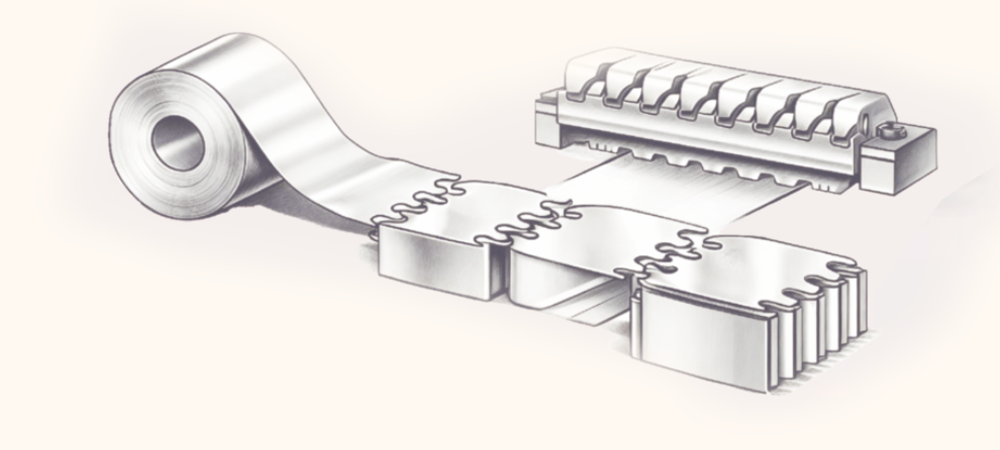

Scroll Cutting Line
Best for flat sheet production with material utlization.
Scroll Cutting Line
Output: Sheets
Ideal: Printing
Downstream: Printing lines
Best for: HIGH PRECISION SHEETS

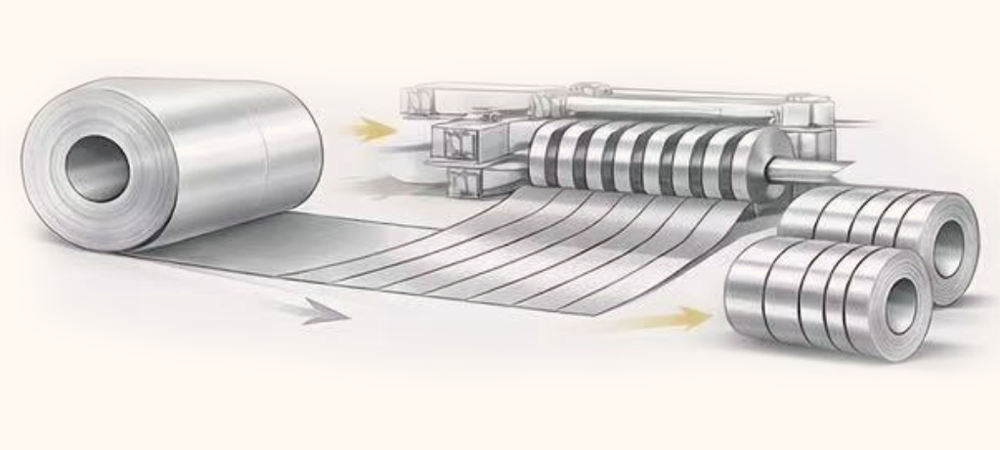

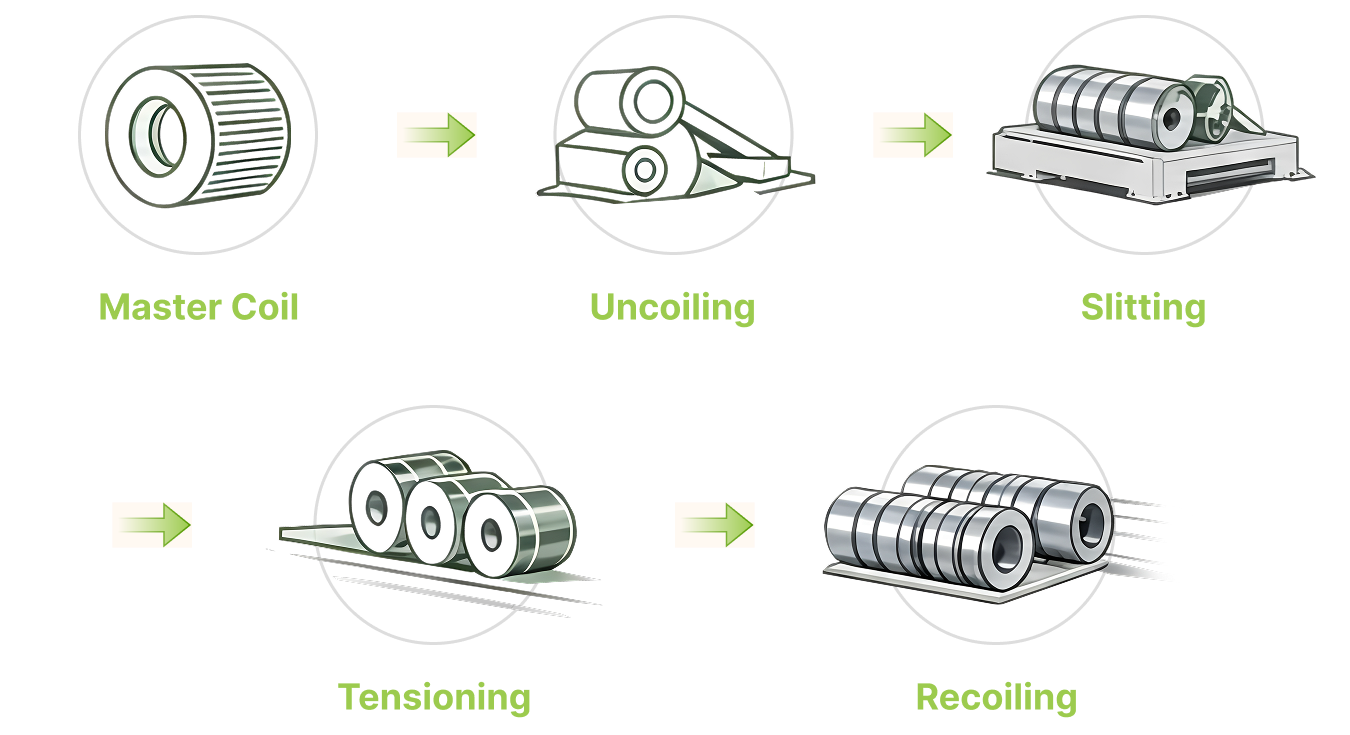

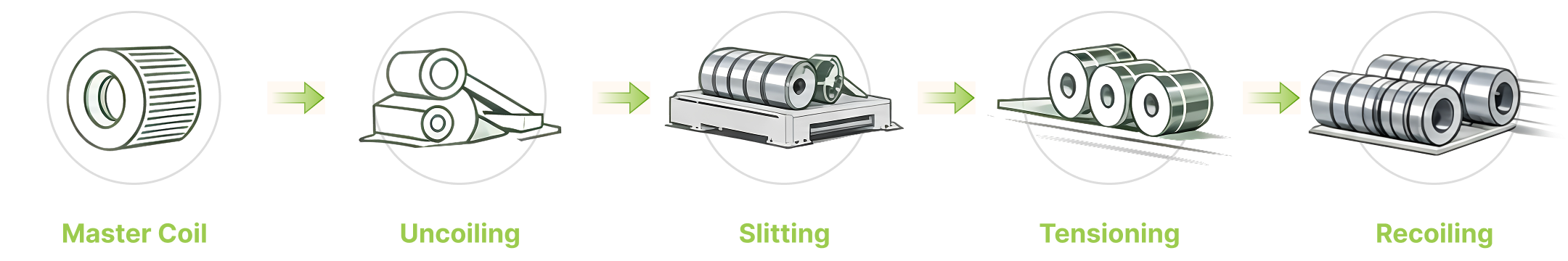

Slitting Line
Ideal for narrow strip processing and continuous
Slitting Line
Output: Coils /Strips
Ideal: Stamping / forming
Downstream: Can-making lines
Best for: NARROW STRIP PROCESSING
Not sure which line suits your production?
We can help you select the right solution based on your materials, thickness, andd production goals.
Scroll Shearing Line (Cut-to-Length with Wavy Edge)
Available Models for Scroll Cutting Applications
Model
Working Width（mm)
Cutting length(mm)
Thickness Range（mm）
Tolerance
Max coil diameter
Coil I.D.
Max Line Speed
Max cutting speed
Capacity
Key application Value
XHV75P
600-1200
460–1200
0.15-0.5
±0.15 mm
Φ1800 mm
Φ405–Φ508 mm
60 m/min
75 SPM
25 T/Shift
Cost-effective CTL solution
XHV100P
600-1200
460–1200
0.15-0.5
±0.15 mm
Φ1800 mm
Φ405–Φ508 mm
80 m/min
100 SPM
33 T/Shift
Proven and widely used
XHV120P
600-1200
460–1200
0.15-0.5
±0.15 mm
Φ1800 mm
Φ405–Φ508 mm
100 m/min
120 SPM
40 T/Shift
High-speed,high precision cutting
XHV180P
600-1200
460–1200
0.15-1.5
±0.15 mm
Φ1800 mm
Φ405–Φ508 mm
150 m/min
180 SPM
60 T/Shift
Heavy-duty design, high output
Designed for high-precision sheet production with optimized material utilization through scroll shearing technology.
Slitting Line
Available Models for Coil Slitting Applications
Model
Working Width（mm)
Thickness Range（mm）
Max coil diameter
Mandrel standard diameter
Max Line Speed
Burrs After Cutting
Capacity
Key application Value
XHZ1250
≤1250
0.15-1.2
Φ2000 mm
Φ410–Φ508 mm
150-250 m/min
(0.8mm Thickness) ≤3%, Less than 0.02mm when Thickness is ≤0.7mm (JIS Standard Coil)
120-260 T/Shift
120- Thin-gauge,high-speed slitting
XHV100P
≤1650
0.3-3.0
Φ2000 mm
Φ410–Φ508 mm
150-250 m/min
(0.7~3.0mm Thickness) ≤ 3%, Less than 0.02mm when Thickness is ≤ 0.7mm (JIS Standard Coil)
150-370 T/Shift
Wide and medium-thick coils
Ideal for continuous narrow strip processing with stable tension control and high-speed operation.
Applications
Metal Packaging
Materials

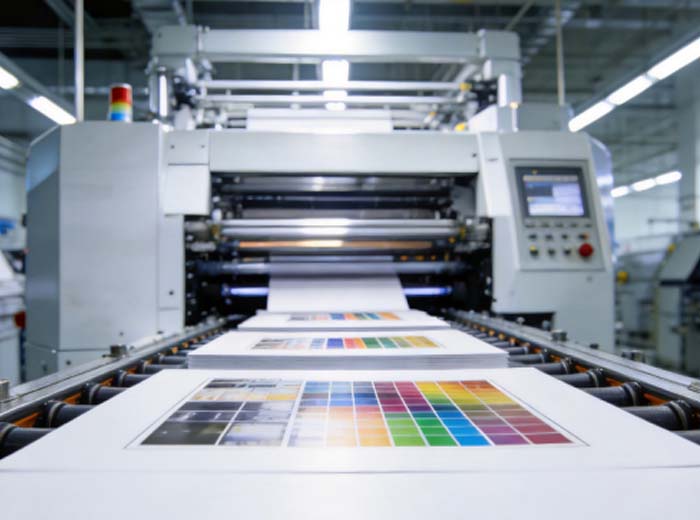

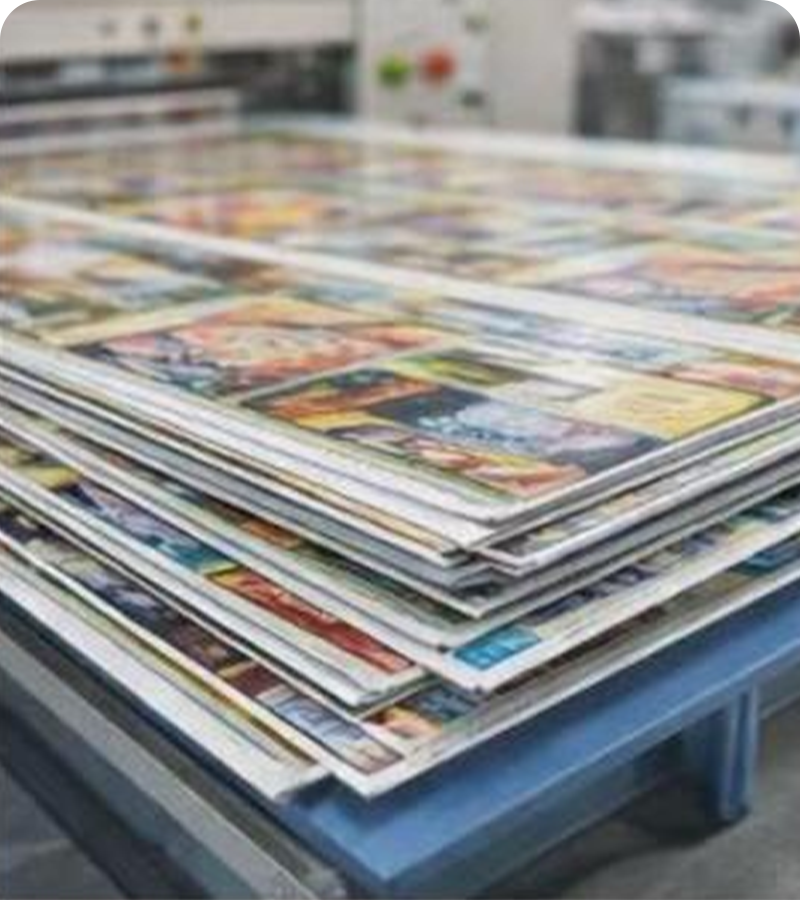

Metal Printing
Sheets

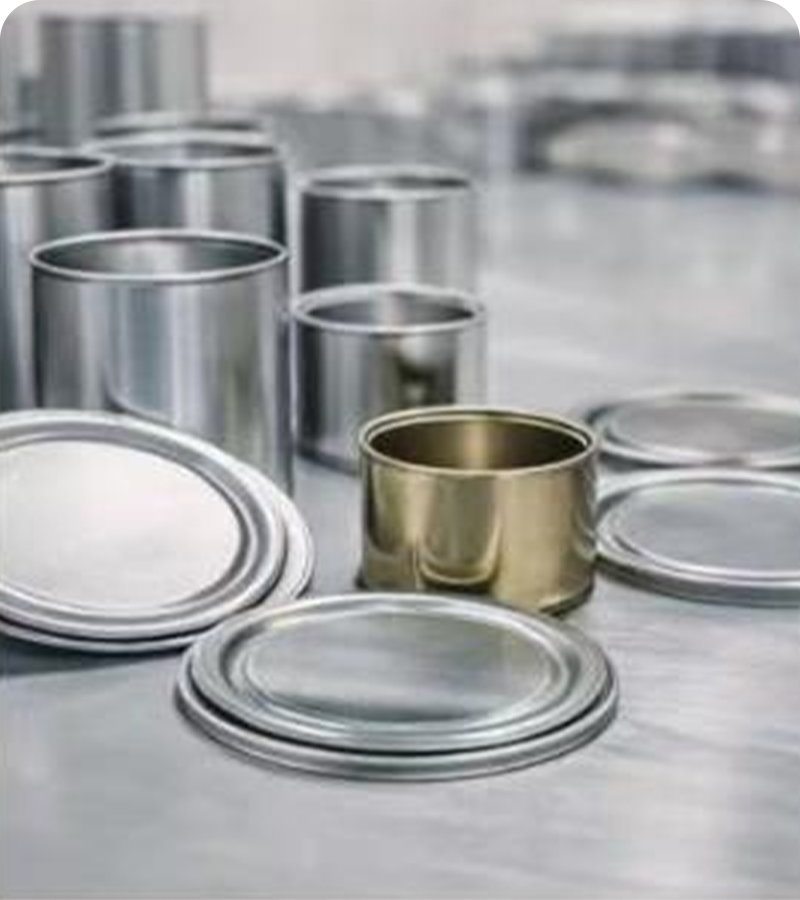

Can & End
Manufacturing

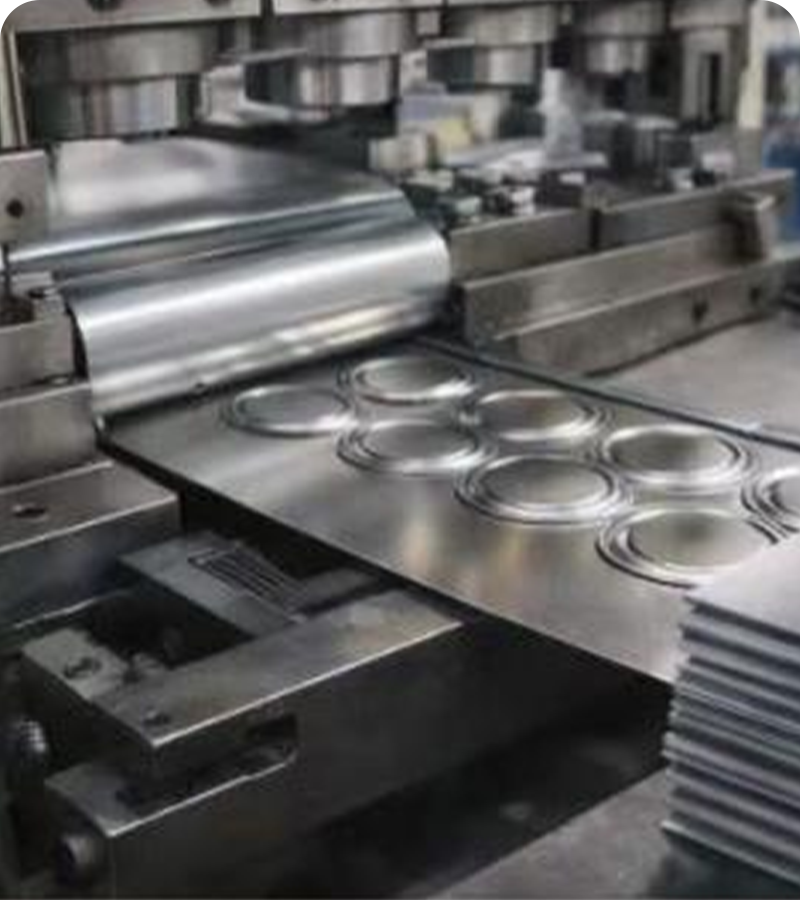

Sheet Feeding for
Stamping Lines
Why Choose H&Z Machinery
Higher Material Utilization
Scroll cutting reduces scrap loss and maximizes sheet yield.
Proven in Can-Making Lines
Widely used in metal packaging and high-speed production environments.
Optimized for Thin Gauge Materials
Stable processing for tinplate, aluminium, and precision sheets.
Complete Line Engineering
From decoiling to stacking, fully integrated production solutions.
