High-Speed Coating + Precision Printing + Uniform Curing • Up to 6000 sheets/hour • Precise registration • Steady running
Equipment Overview

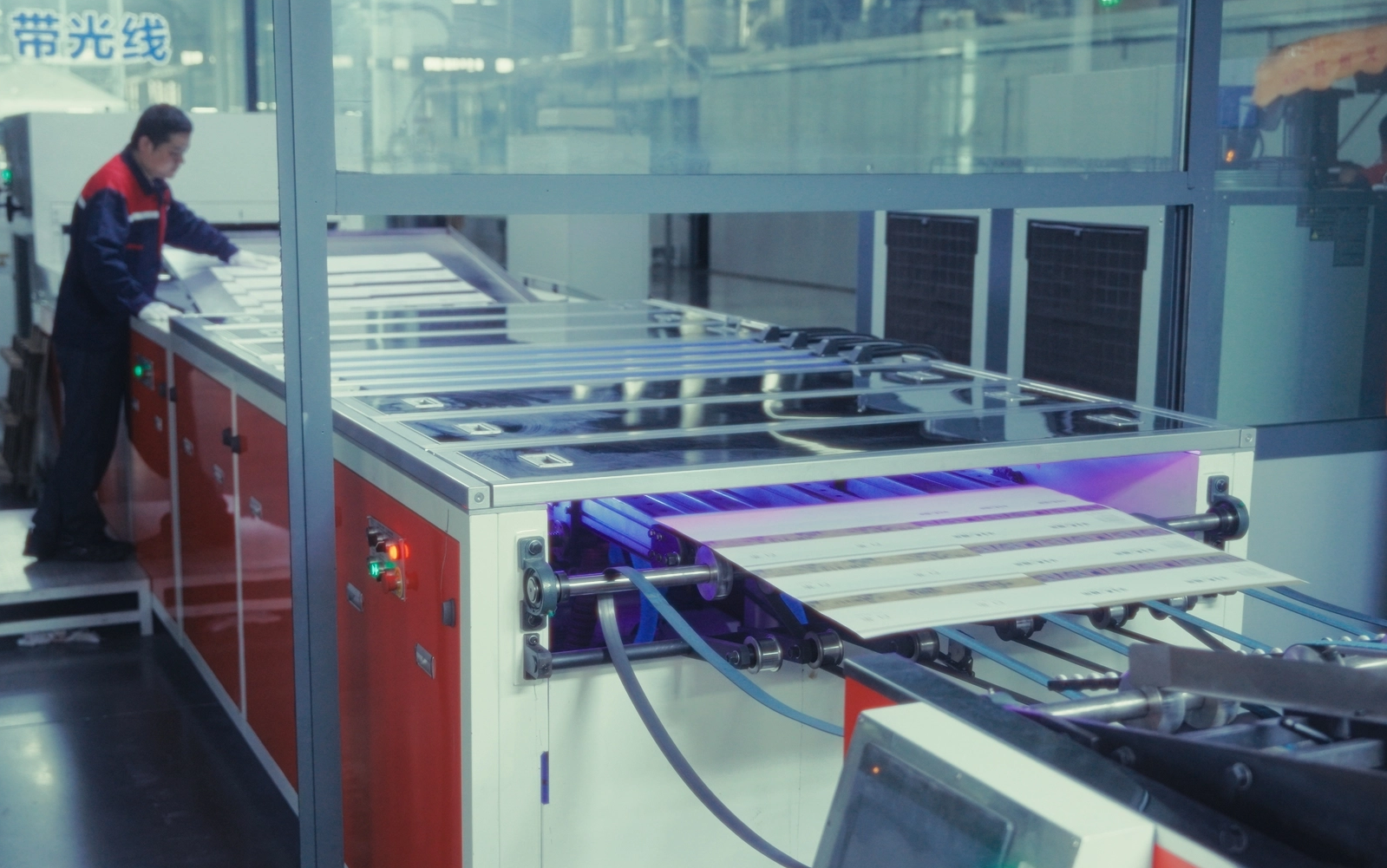

This complete line is engineered as a synchronized production unit. It transforms raw metal sheets into finished, decorated substrates ready for forming, through three core modules: coating, printing, and curing. Each module is designed for continuous operation, precision control, and maximum uptime, ensuring a smooth flow from primer application to final cured print.
Key Features
High-Speed Synchronized Production Micron-Level Precision Future-Proof Flexibility
Core Engineering & Reliability
1
Robust Frame &
Vibration Control
Stable foundation
for precision across all units.
2
Fully Digital
Control System
Centralized monitoring and adjustment of coating, printing, and curing parameters.
3
Scratch-Free
Conveyance & Handling
Integrated sheet transfer systems
protect surface quality.
4
Energy-Efficient
Thermal Management
Optimized heating and cooling
for reduced operating costs.
Process Flow
Technical Specifications
Coating Unit
Coating Unit
Max. Coating Speed
6,000 sheets/hour
Sheet Size Range
680×480 mm – 1145×965 mm
Coating Thickness Range
0.167 – 0.6 mm
Drying Temp. Range
0–220℃
Power
7.5 kW
Printing Unit
Printing Unit
Printing Colors
6 (expandable)
Max. Print Area
1135 × 945 mm
Production Speed
5,500–6,000 sheets/hour
Sheet Thickness
0.16–0.50 mm
Machine Weight
~72 tons (6-color)
Curing Unit
Curing Unit
Max. Working Temperature
225℃
Max. Throughput
100 sheets/minute
Drying Tunnel Length
21,000–36,000 mm (optional)
Cooling Zone Length
4,663–6,963 mm (optional)
Installed Power
54–73 kW
Compliance & Recognition
CE Certified across all units. Sophisticated technologies with innovatio award. Protected by multiple invention and utility model patents.
Applications
Specialty Packaging
Beverage
Food
More Than These Applications
Adaptable to diverse metal packaging needs across industries.
Why Choose This Integrated Line
Proven Speed & Synchronization
Maximized throughput with minimal transfer downtime.
End-to-End Quality Control
Coating uniformity, print registration, and cure consistency ensured.
Operational Stability
Robust construction and intelligent controls for 24/7 reliability.
Global Support & Integration
Designed for seamless line integration and worldwide operational standards.
