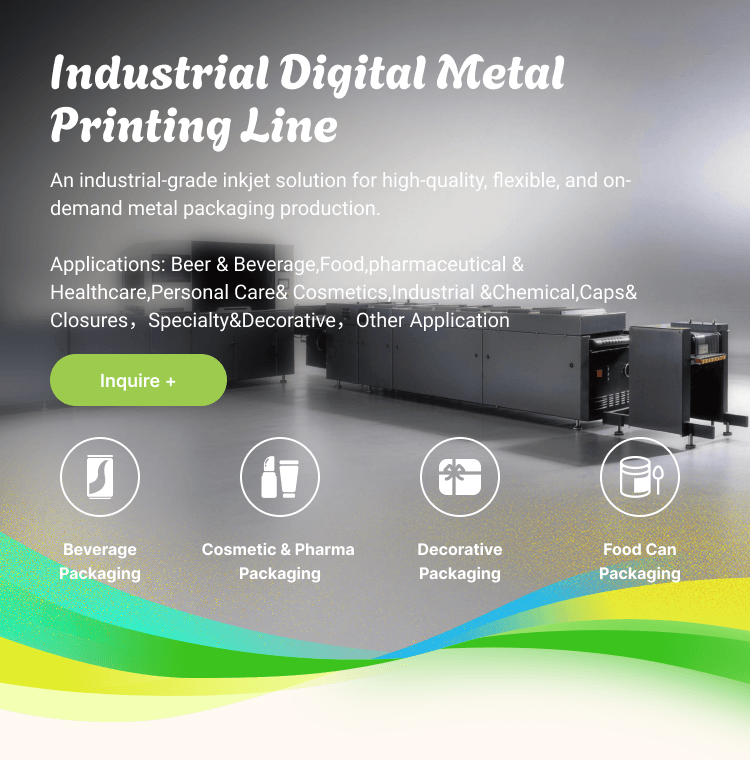

Industrial Digital Metal Printing Line

High-quality, Flexible, Efficient Metal Packaging
• High-Speed LED UV Printing
• Precision Color, Premium Results
• Compact Design, Lower Cost

Equipment Overview

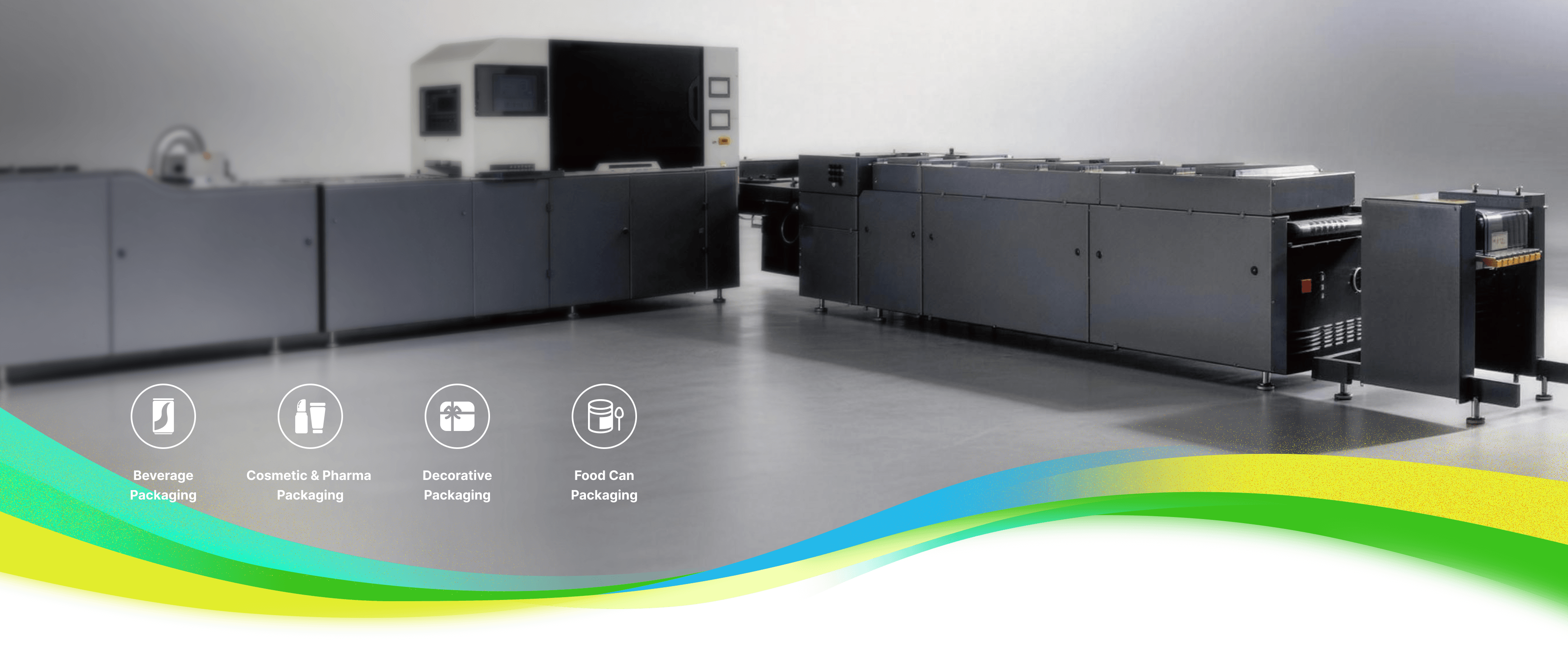

Integrated Digital Metal Printing Line
This industrial-grade inkjet system transforms metal sheets into high quality printed packaging with digital precision. It supports a variety of metal types such as tinplate, aluminum, and stainless steel, offering on-demand and flexible production.

All processes-including printing, curing, and quality control are integrated into
one streamlined system, ensuring efficient operation and excellent printing results.

Key Features

Designed for flexible, high-speed production
Supports a wide range of metal types for diverse packaging needs
Enables on-demand, custom designs with exceptional color accuracy

Low waste, high efficiency in metal printing

Industrial-Grade Inkjet System

Designed for long-term stability and consistent print quality, ensuring reliable performance.

01 02 03 04 05

Key

Advantages

High-Speed LED UV Curing

Instant curing for excellent ink adhesion on metal surfaces, supporting high-speed production.

Low Waste, High Efficiency

Independent ink cleaning per color minimizes ink loss and reduces production costs.

Automated Printhead Maintenance

Reduces downtime and operator dependency through automatic ink supply, cleaning, and protection.

Flexible Color Configuration

Up to 7-color printing (CMYK + spot colors), delivering premium quality for metal packaging.

Why Digital for Metal?

Traditional offset Printing Digital Metal Printing

Plate Required
Long Setup Time
High Waste

No Plates Needed
Instant Setup
Lower Material Waste

Best for long-run, high-volume, standardized production

Ideal for short runs, multi-SKU, and on-demand production

Process Flow

Each module is engineered for stable sheet transport, accurate registration, and continuous operation.

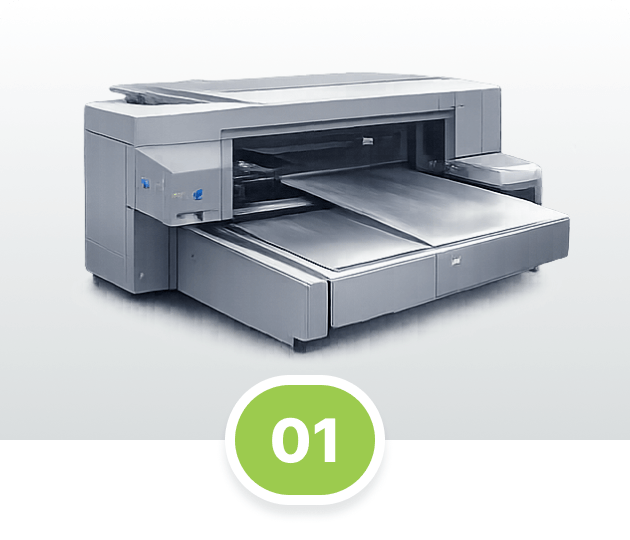

Feeding

Stable Sheet

Feeding

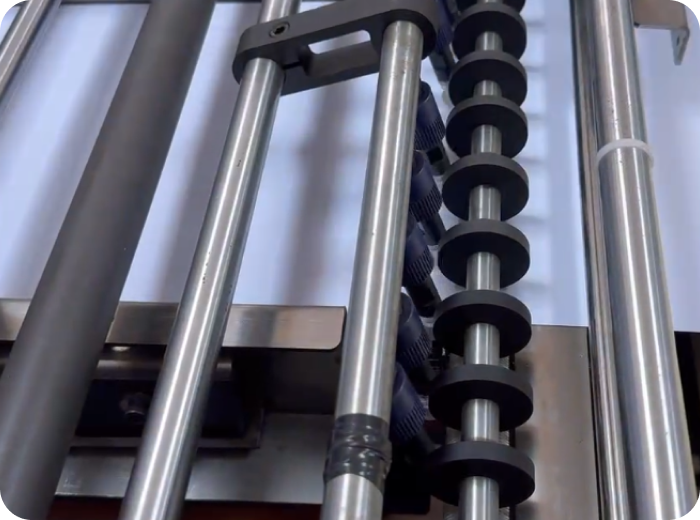

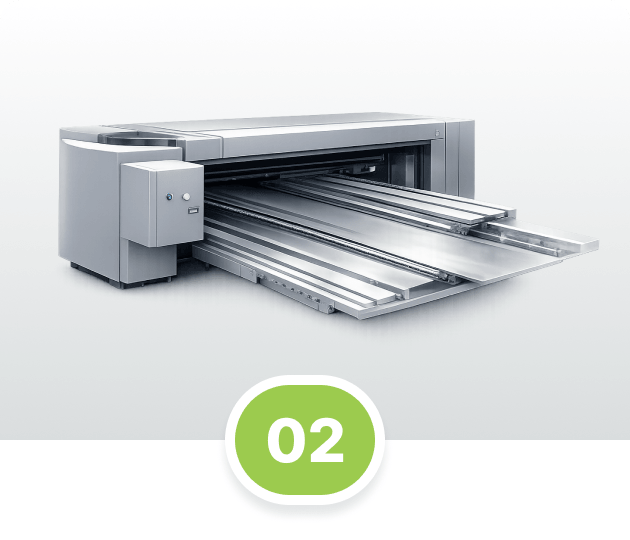

Conveying

Smooth & Continuous

Sheet Transport

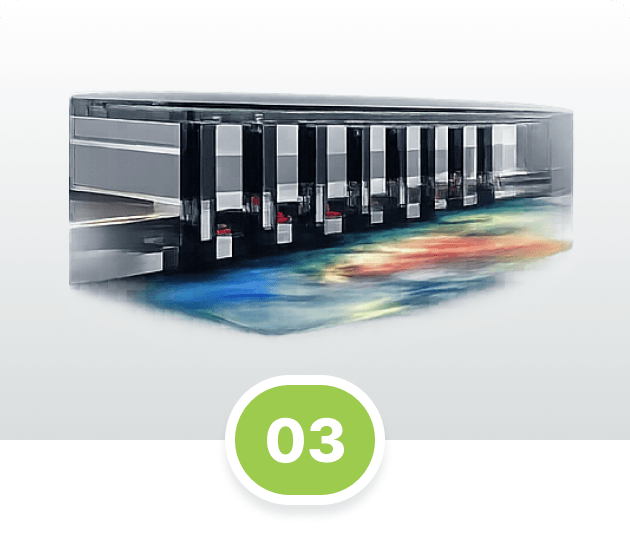

Inkjet Printing

Plate-Free

Digital Inkjet

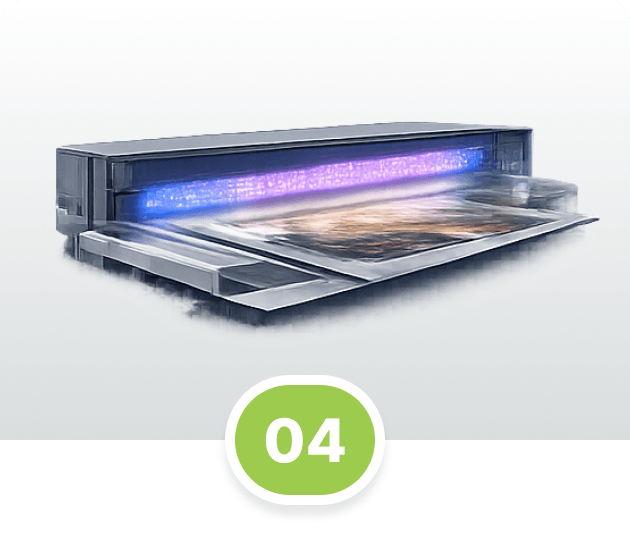

UV Varnishing

Instant Drying

& Finishing

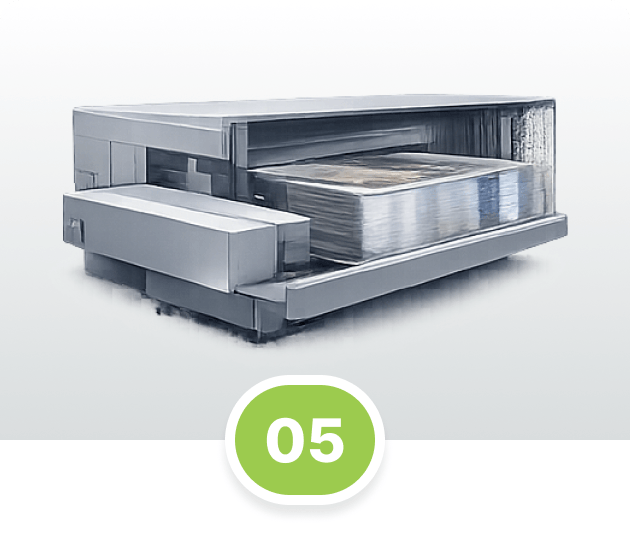

Output

Automated Stacking

& Output

Technical Specifications

Model	508	995
Max. Resolution	Kyocera (25 printheads,supporting 4-5 color configurations)	Kyocera (60 printheads,supporting 7 color configurations)
Material	600 x 600 dpi – 600 x 1200 dpi	600 x 600 dpi – 600 x 1200 dpi
Max. Speed	50 m/min	50 m/min
Max. Width	508 mm	928 mm
Ink Type	LED-UV ink	LED-UV ink
Color	CMYK or CMYK+White	CMYK+White (Optional double-white configuration)
Software	PrintFactory (PDF, JPEG, TIFF, EPS, AI)	PrintFactory (PDF, JPEG, TIFF, EPS, AI)
Dimensions	14104 × 9980 × 1950 mm	20140 × 10485 × 2300 mm
Weight	7500 kg	9000 kg
Power	59 kW	110.5 kW

Digital Printing Applications

Food & Beverage

Metal Packaging

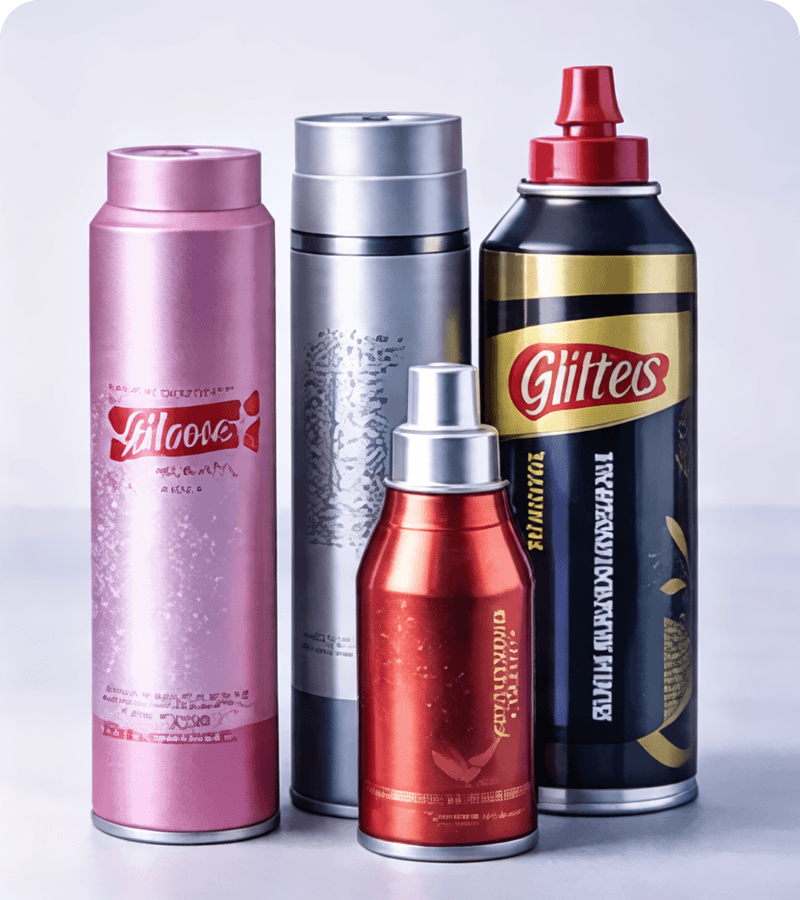

Aerosol

Industrial Cans

Seasonal & Promotional

Limited Editions & Campaigns

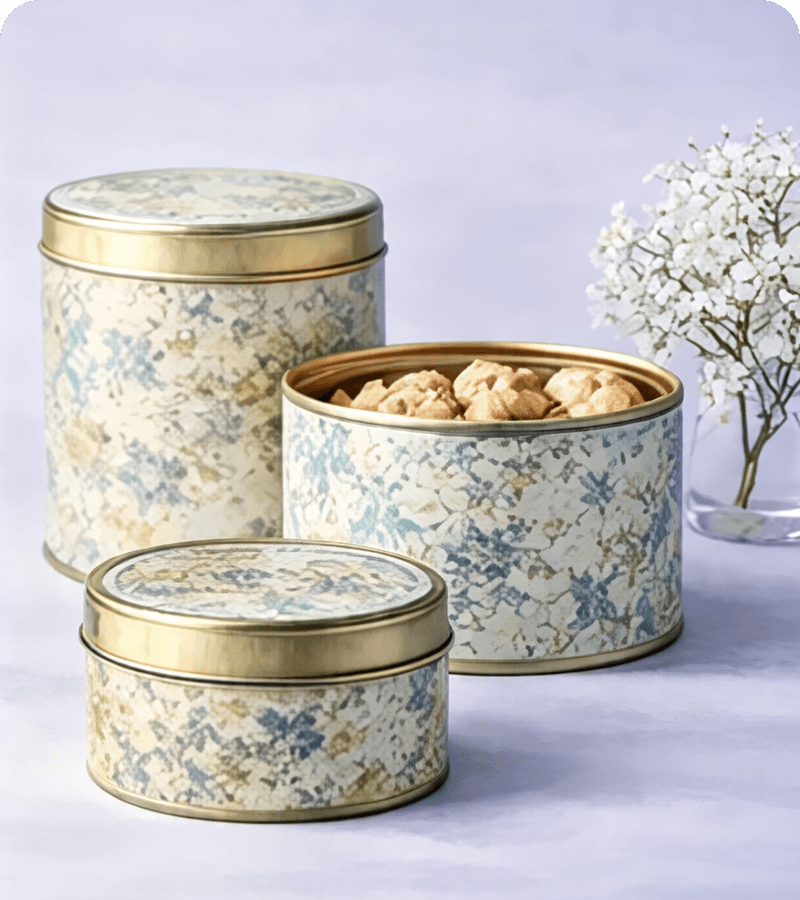

Specialty

Premium & Decorative Tins

More Than These Applications

Adaptable to diverse metal packaging needs across industries.

Why Choose H&Z Machinery

High Speed to Marke

From design to printed packaging in hours, enabling rapid production cycles for your packaging needs.

Maximum Production Flexibility

Supports multiple SKUs, instant job changes, and custom designs, ideal for industries with evolving packaging demands.

Lower Total Cost of Ownership

No plates, minimal waste, lower setup costs, and reduced risk, making it a cost-effective choice for manufacturers.

Future-Proof Industrial Solution

Built for smart factories and Industry 4.0, ensuring your digital metal printing line stays ahead of the curve.
