Home Metal Sheets and Coils TFS (Tin-Free Steel)

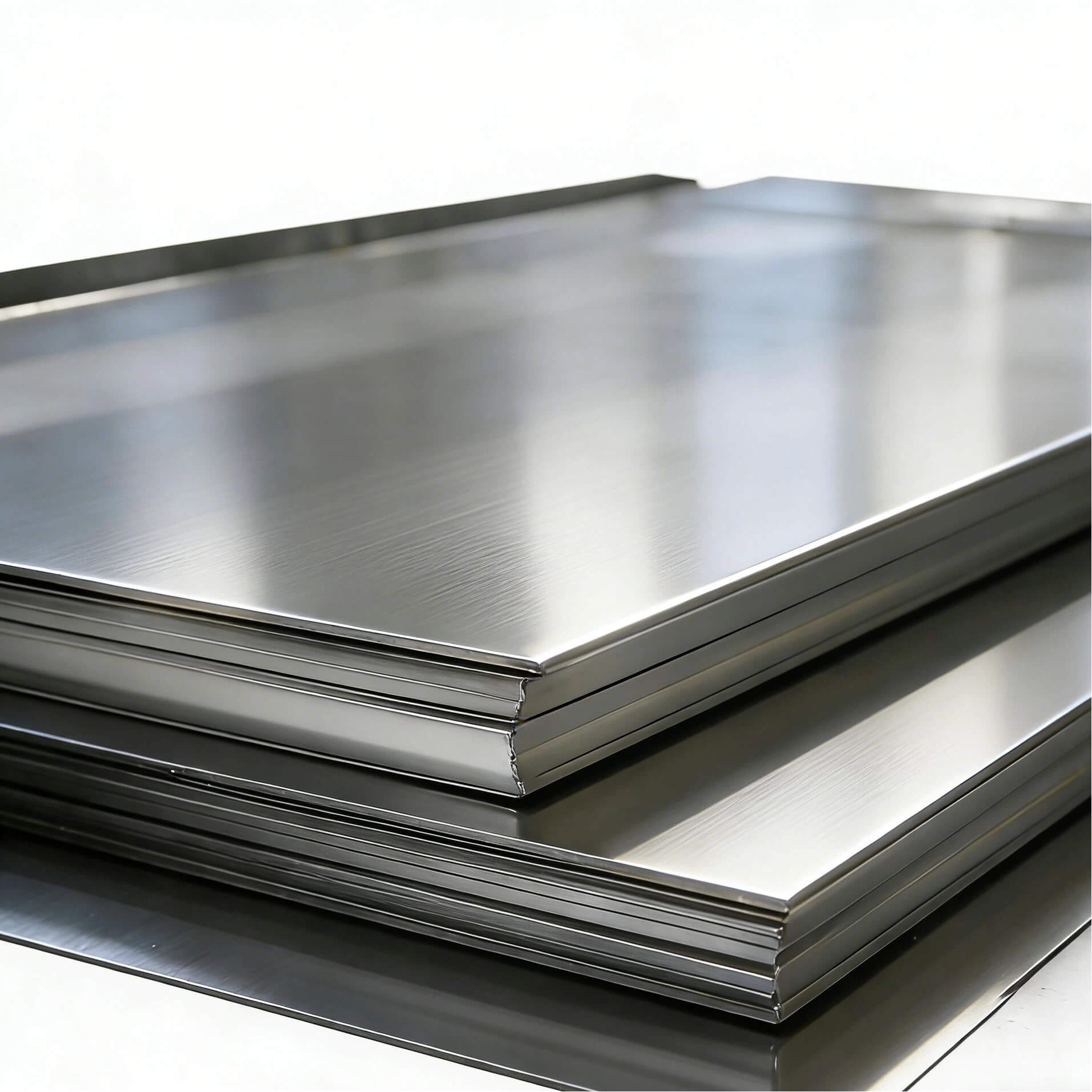

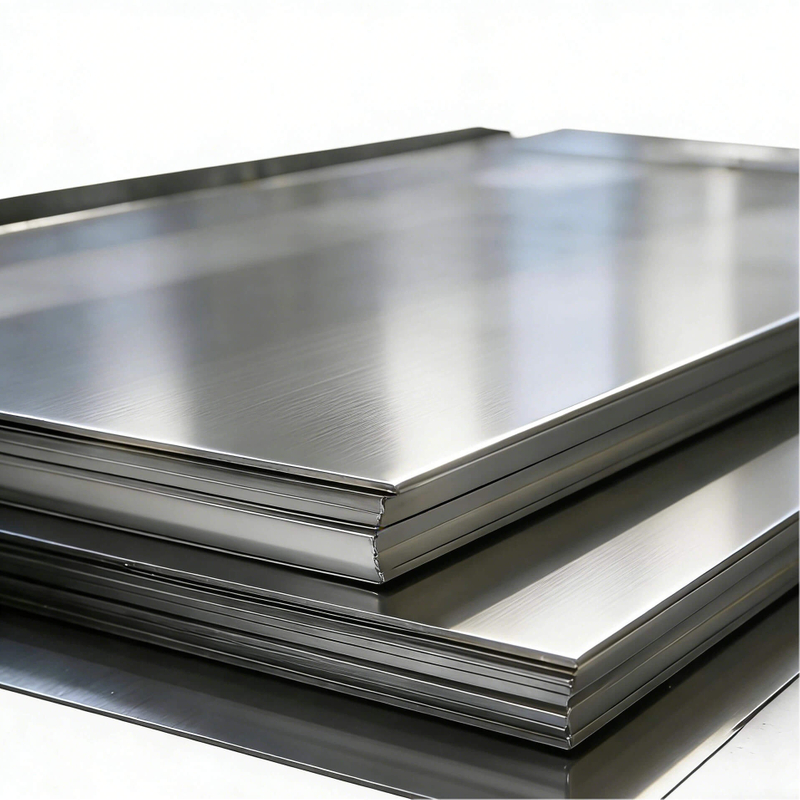

Electrolytic Chrome Coated Steel (ECCS) offers excellent coating adhesion, durability, and corrosion resistance. Compared with traditional tinplate, TFS provides a cost-effective solution for applications requiring strong lacquer bonding and stable performance.

Widely used in can ends, closures, and industrial packaging.

Thickness:
0.12 – 0.5 mm

Width:
700 – 1050 mm

Material:
SPCC, MR, SPCH, DC03, DC04

Temper:
T1 – DR9

库存： 0

Inquire Now

Product Overview

How It Protects

Key Features

Technical Specifications

TFS Structure

▎Product Overview

Brief Description: Tin-Free Steel (Electrolytic Chromium Coated Steel, ECCS) is a cold-rolled low-carbon steel sheet coated on both sides with a thin dual layer of metallic chromium and chromium oxide. The coating delivers excellent lacquer adhesion, corrosion resistance after coating, high hardness and heat resistance—making TFS ideal for ends and closures across food, beverage and general-line packaging.

▎How It Protects

TFS protects via a dual chromium coating: a metallic chromium underlayer topped with a chromium-oxide film that creates strong chemical anchor sites for primers, lacquers, and inks. After coating and baking, the lacquered system forms a continuous barrier that delivers excellent corrosion resistance—including sulphide-stain resistance—while the hard chromium surface adds abrasion durability. Because the surface is chromium, it is not readily solderable; parts are typically joined by electric-resistance welding or by adhesive/cementing.

▎Key Features

Corrosion resistance (with lacquer)

Stable against a wide range of contents; excellent sulphide-stain resistance.

Outstanding Paintability & Printability

Strong adhesion to primers, lacquers and inks; supports high-temperature baking with good color retention.

Good Formability & Rigidity

Multiple temper grades for curling, flanging and seaming; suitable for stamping and shallow draw.

Scratch & Abrasion Resistance

Hard, uniform surface helps maintain decoration quality.

Clean, Uniform Appearance

Matte/stone finish for premium decoration and barcode readability.

Process Note

TFS is not solderable; typically used with organic coatings and joined by welding or adhesive/cementing.

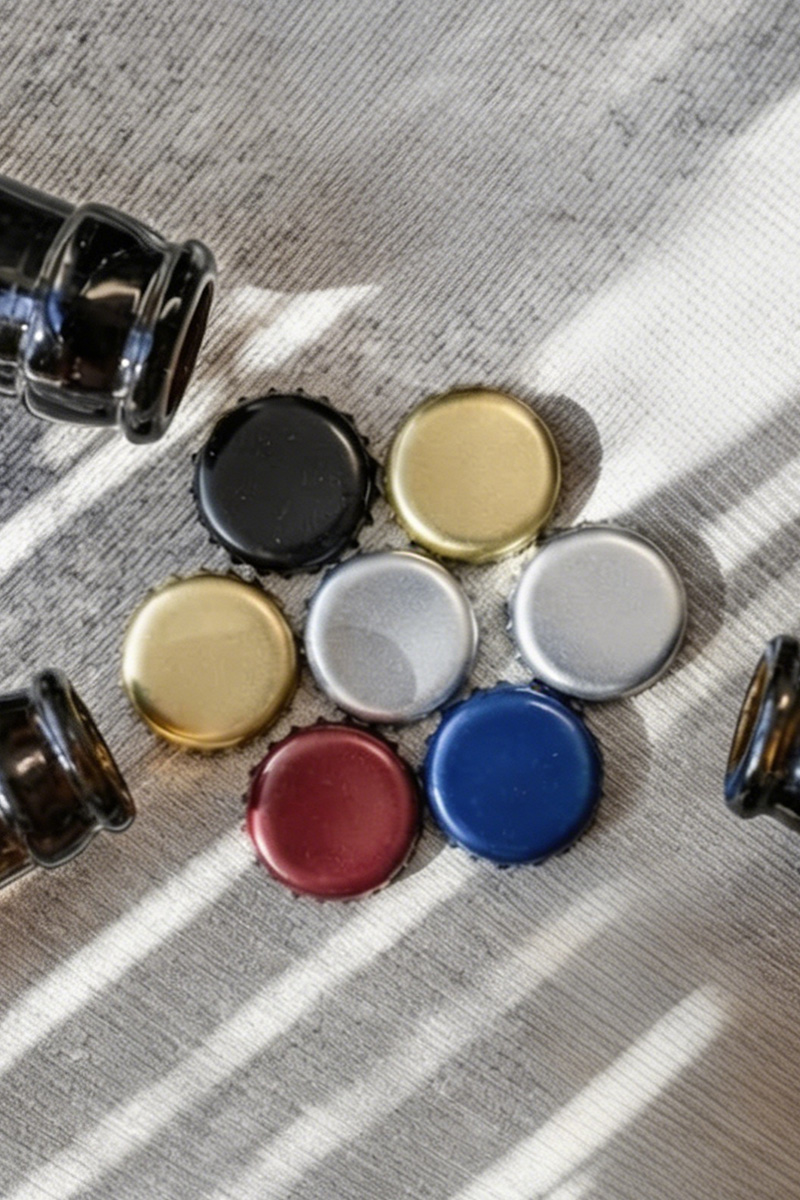

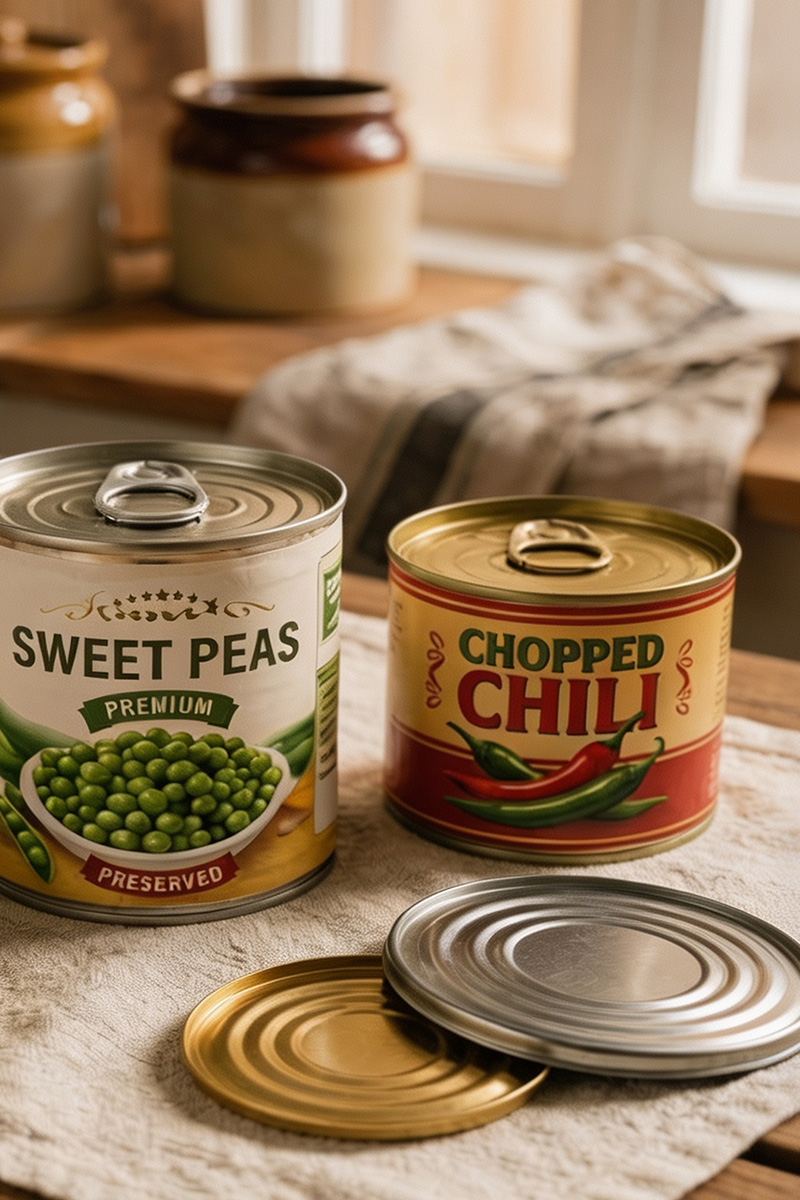

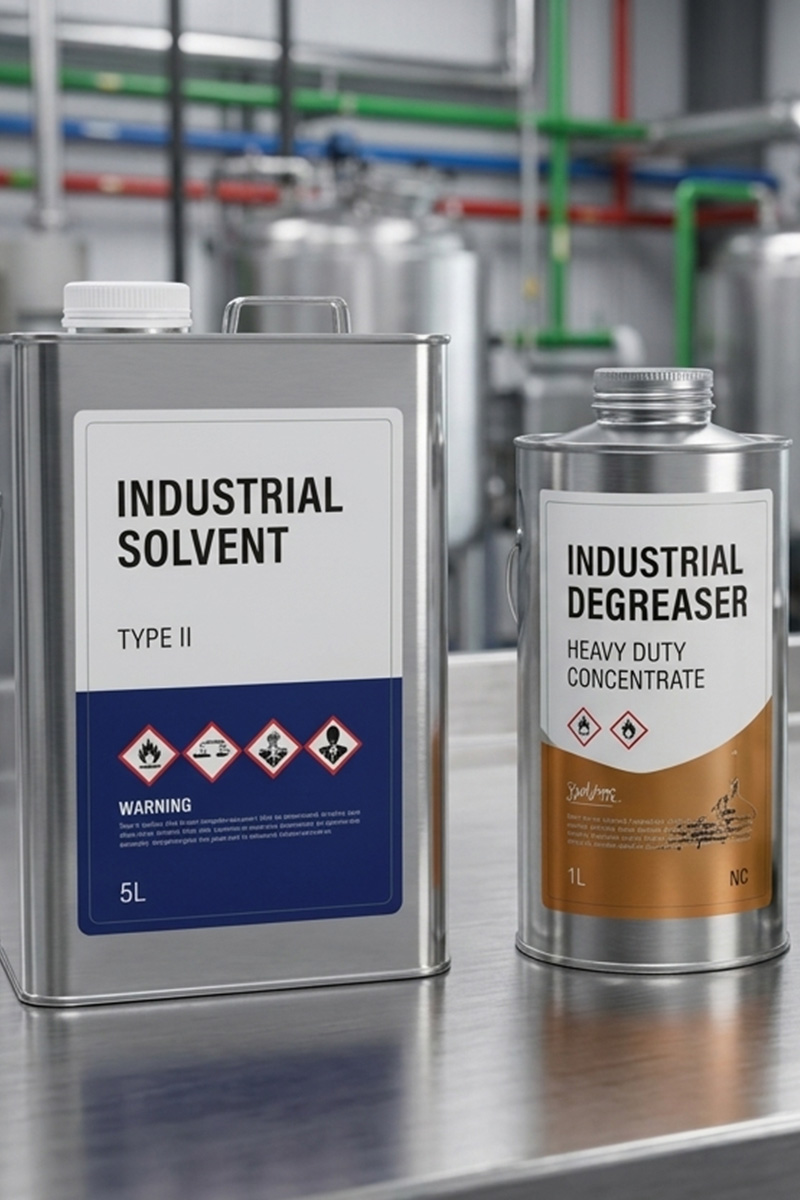

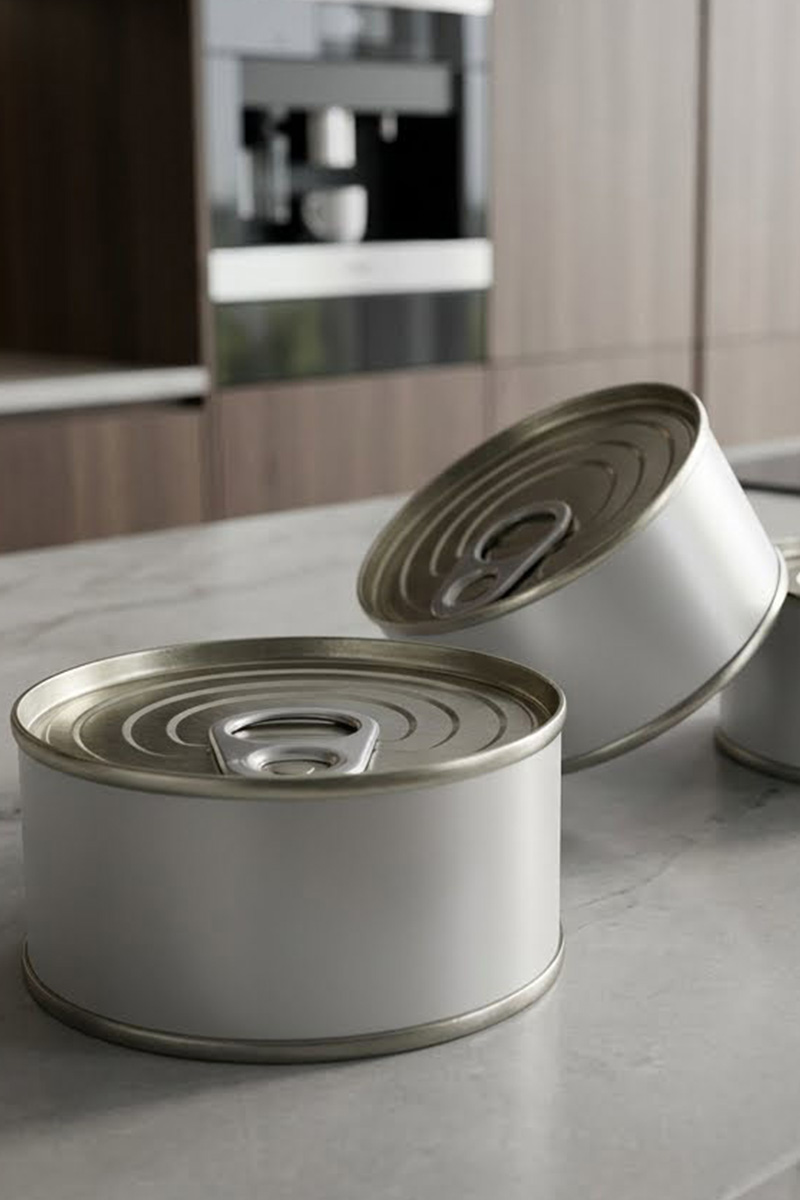

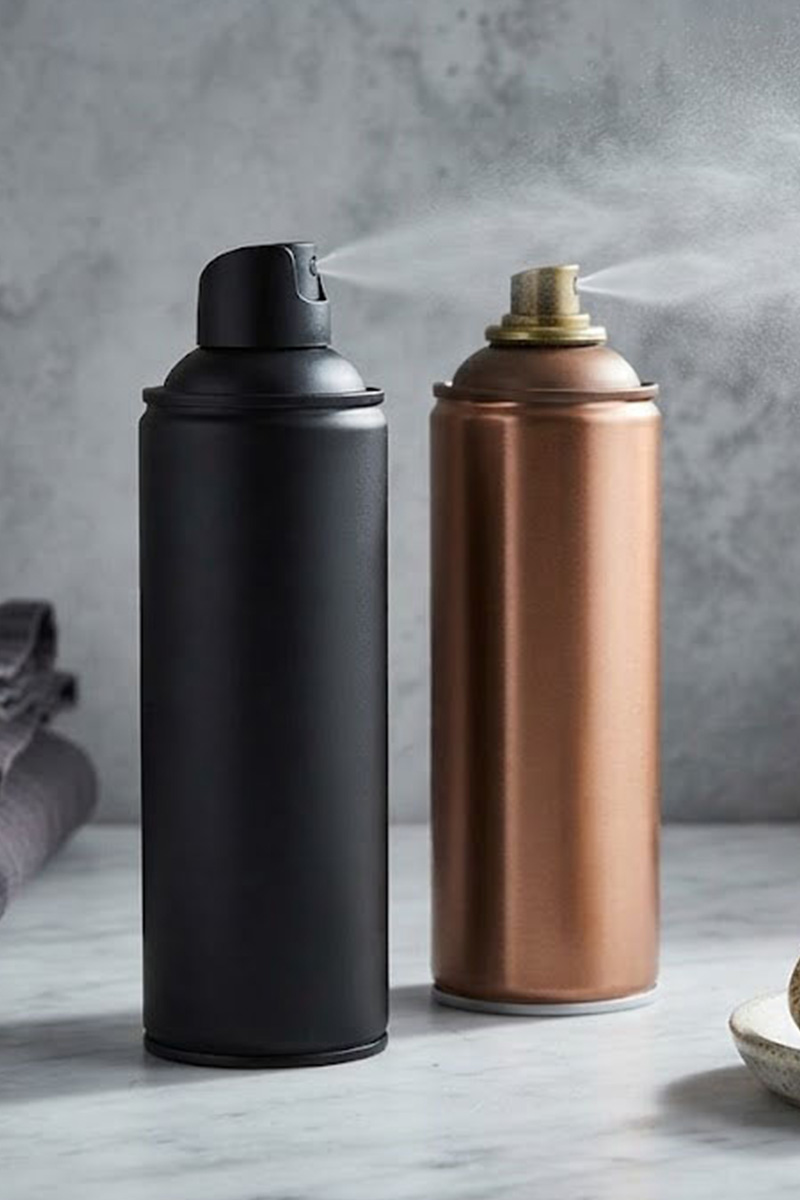

▎Main Applications

▎Technical Specification

Product Name: Tin Free Steel (TFS/ECCS); Electrolytic Chrome Coated Steel

Thickness: 0.12-0.5 mm

Width: 700-1050 mm

Material: SPCC, MR, SPCH, DC03, DC04

Temper: T1-DR9

Annealing: BA (Batch annealing)

Coating Weight (mg/m2): 50-150

Surface Finish: Bright, Stone, Matte, Silver

Standard: GB/JIS/DIN/ASTM（Can be produced according to customer requirements）

Origin: China

MOQ (Minimum order quantity): 15 tons

Delivery time: 45 days

FINISHES
Type	Main uses	Features
Bright	General purpose cans	Finishing with melted tin, with a bright shine
Mate	Crown caps, ends, twist-off (lug) caps	Matte finishes, without shine, withelectrolytically deposited tin withoutmelting on the matte finishes steel plate
Sliver	Cans for differentapplications, crown caps	Finish with melted tin produced usingaspecial treatment on the base metal
Stone	Generaluse cans	Finish with melted tin, produced on thebase metal, with a slightly matteappearance. Resist scratching duringlithography or cans production.

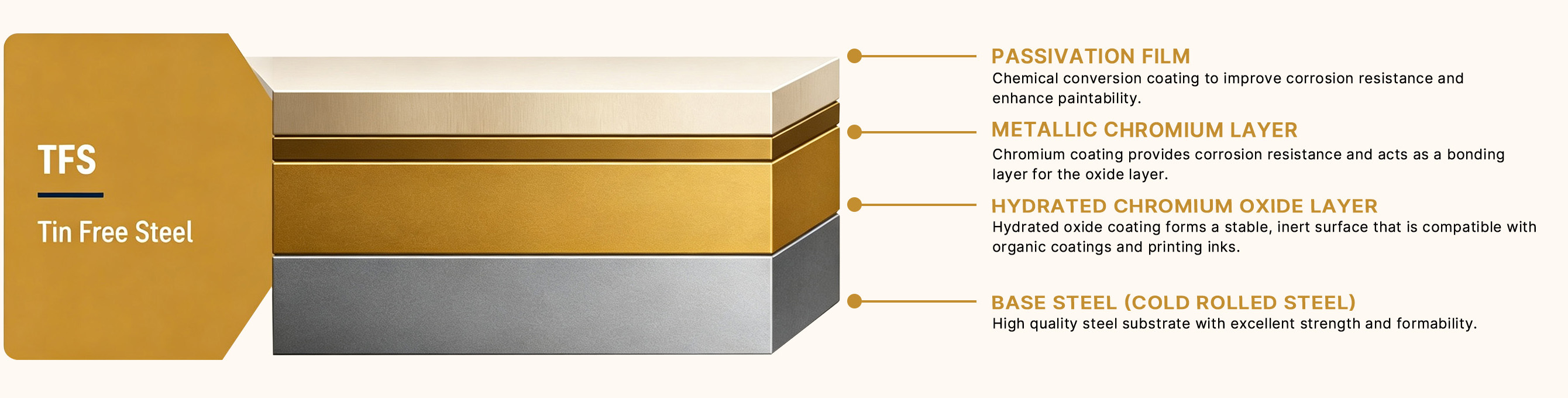

▎TFS Structure

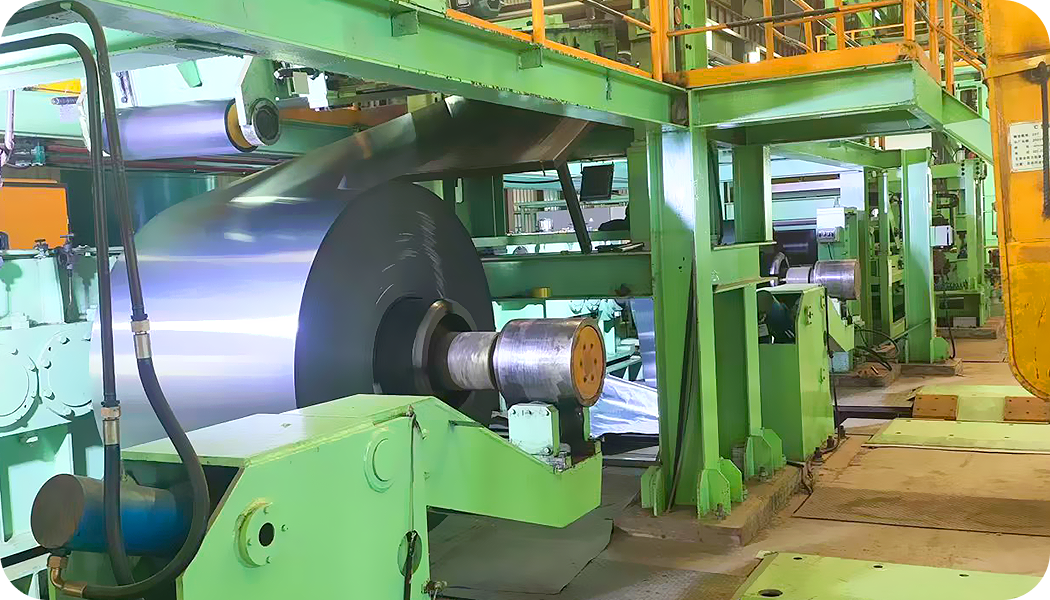

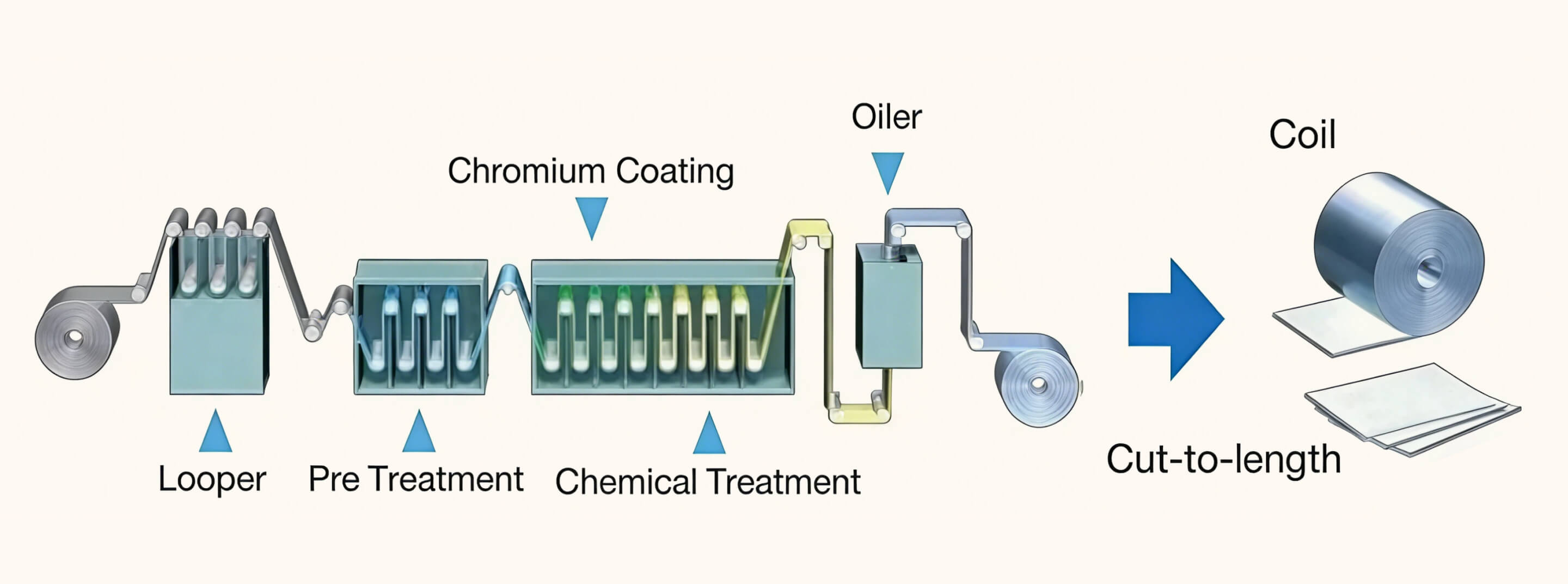

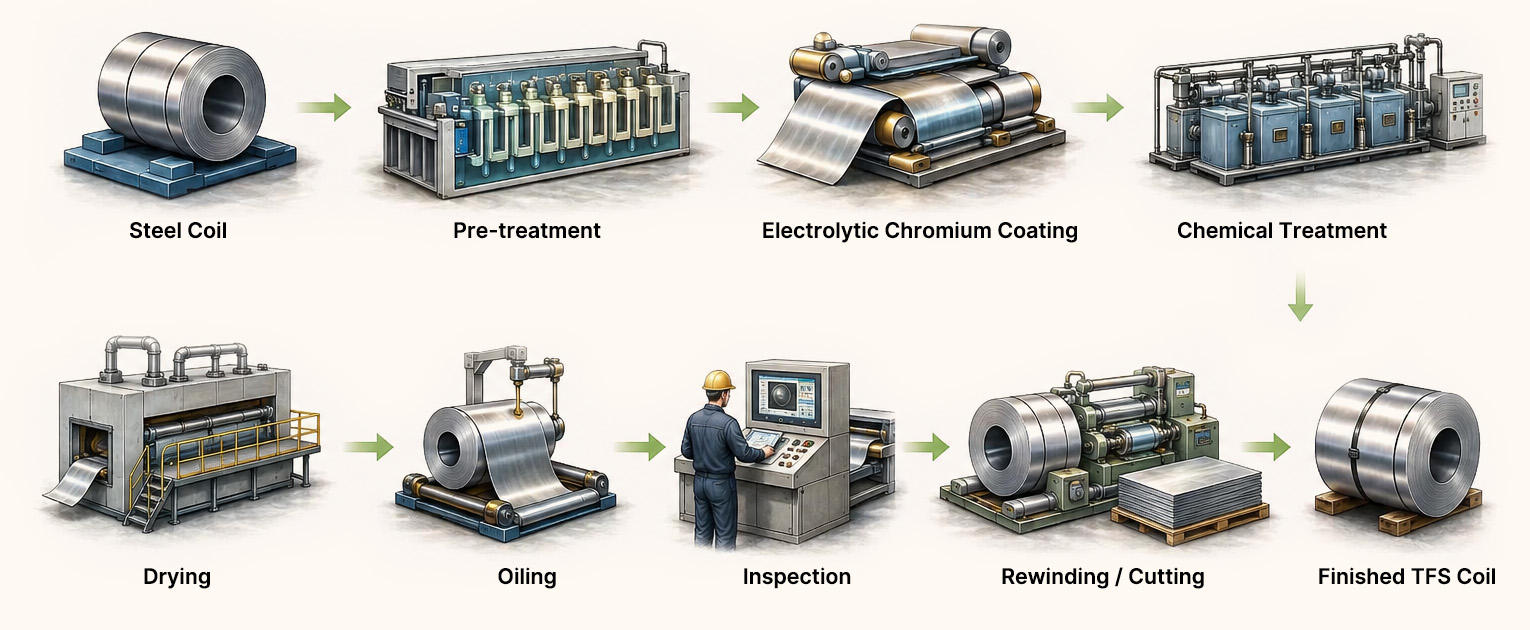

▎Manufacturing Process
