In the world of metal decoration printing, conversations about print quality almost always begin in the same place: screening technology. Should you use AM screening or FM screening? Which produces sharper dots? Which delivers better color reproduction?These are fair questions, but they often distract printers from another critical factor that is frequently underestimated in metal decoration printing — ink transfer. While screening technology certainly influences image reproduction, consistent ink transfer often plays an equally important role in determining final print quality.
Understanding the difference between dot type and ink transfer efficiency is essential for anyone serious about achieving consistent, high-quality output in metal packaging printing. Whether you are printing tinplate food cans, aerosol cans, crown caps, or decorative tins, the mechanics of how ink moves from plate to blanket to substrate ultimately define the quality of every print run.
To understand why ink transfer matters more than dot type, it helps to first understand how the two major screening technologies work.

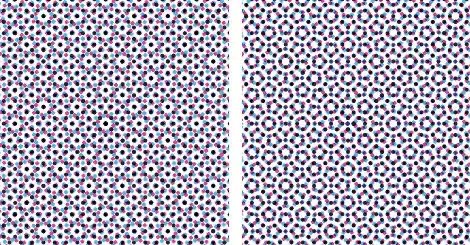

AM screening (Amplitude Modulation) is the traditional approach used in conventional offset printing. The spacing between dots remains fixed, while the size of each dot varies to create tonal values. Larger dots produce darker areas; smaller dots produce lighter areas. Because the dot structure is regular and predictable, AM screening is generally easier to control on press and remains the dominant method in standard metal decoration printing.
FM screening (Frequency Modulation), by contrast, keeps the individual dot size relatively constant but varies the density of dots across the printed surface. Denser dot clusters produce darker tones; sparser clusters produce lighter tones. The result is a stochastic, randomized pattern that can deliver exceptional detail and eliminate moiré patterns. However, FM screening places significantly higher demands on ink transfer efficiency. Because the dots are smaller and more numerous, any inconsistency in how offset printing ink transfers from blanket to metal sheet will immediately become visible in the final print.
AM Screening | FM Screening | |
|---|---|---|
Dot Size | Variable dot size | Fixed dot size |
Dot Spacing | Fixed dot spacing | Variable dot spacing |
Application | Traditional offset | High-definition printing |
Press Control | Easier to control | Higher ink transfer requirement |
This distinction is critical: the screening method sets the structure of your dot pattern, but it does not guarantee print quality on its own. That responsibility falls squarely on the ink.

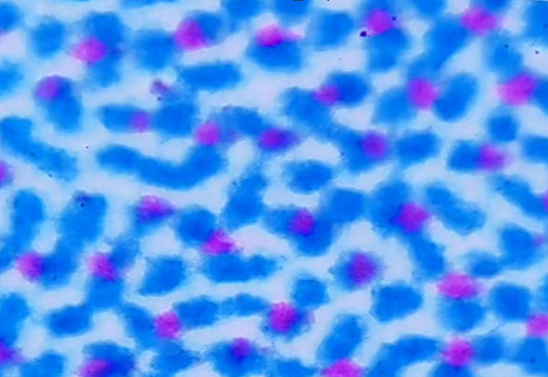

Even when two print jobs share identical conditions — the same press, the same blanket, the same printing plate, and the same printing pressure — different inks can produce dramatically different results. This illustrates that ink transfer is one of the most influential variables affecting print quality. While screening technology defines the dot structure, stable ink transfer largely determines how accurately those dots are reproduced on the substrate.
A high-performance metal decorating ink should consistently deliver the following:
Stable dot formation
Sharp dot edges
Minimal dot gain
High color density
Excellent solid area coverage
Consistent ink transfer from impression to impression
If any of these properties are compromised, the printed decoration will suffer — regardless of whether the job was screened using AM or FM technology.
Dot gain is one of the most commonly misunderstood quality issues in tinplate printing. When an offset dot spreads during impression, it becomes physically larger than intended, causing colors to appear heavier and shadow areas to block up. Printers often compensate for dot gain through curve adjustments in prepress, but this is treating the symptom rather than the cause. Selecting an offset ink with superior rheological properties — the right tack, viscosity, and body for the specific application — is the more effective long-term solution.
Similarly, inconsistent solid coverage is a reliable sign of poor ink transfer behavior. In metal packaging printing, solid areas are often critical design elements — brand colors, background fills, and spot colors that must remain uniform across the entire production run. An offset printing ink that delivers uneven solids is a liability in any serious production environment.

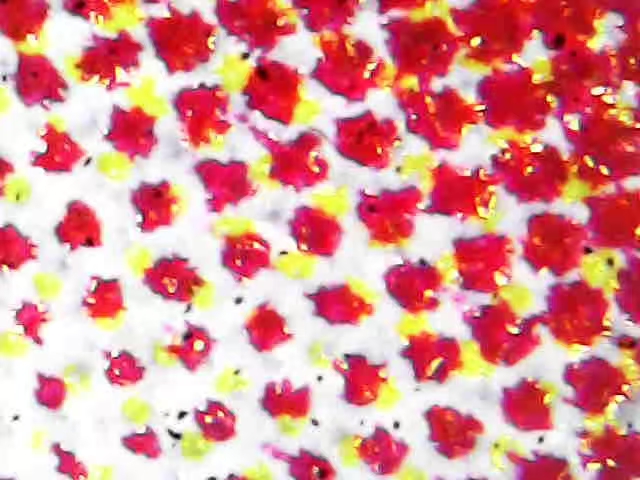

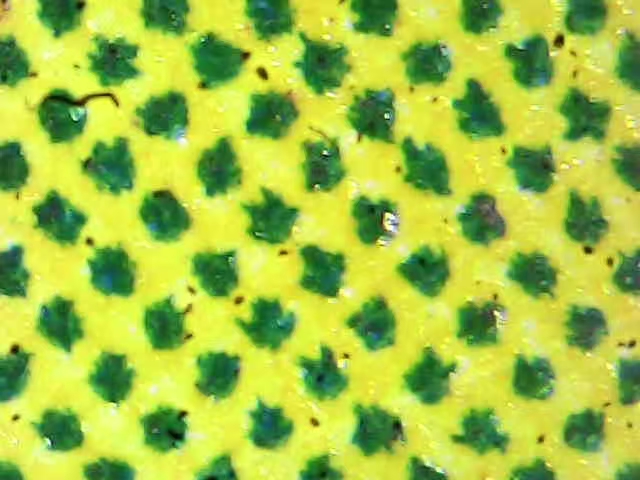

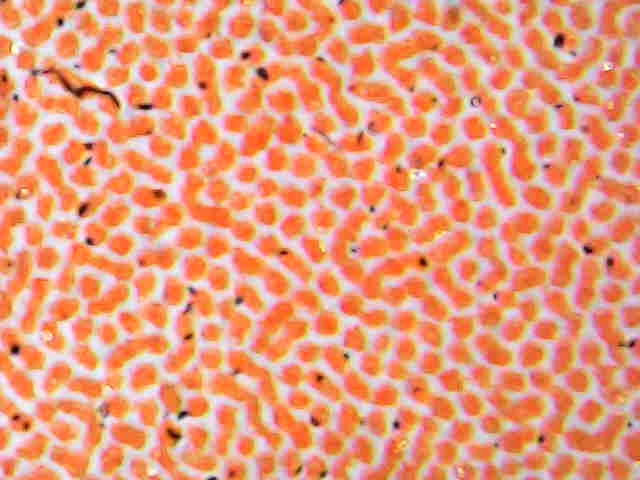

One of the most reliable ways to assess printing performance is through microscopic examination of printed samples. This approach moves the evaluation beyond subjective visual inspection and into objective, measurable territory. The microscope images below (captured at the same magnification) illustrate typical examples of stable ink transfer under different color conditions. Microscopic observation provides valuable visual evidence of dot integrity, edge sharpness, and ink distribution.

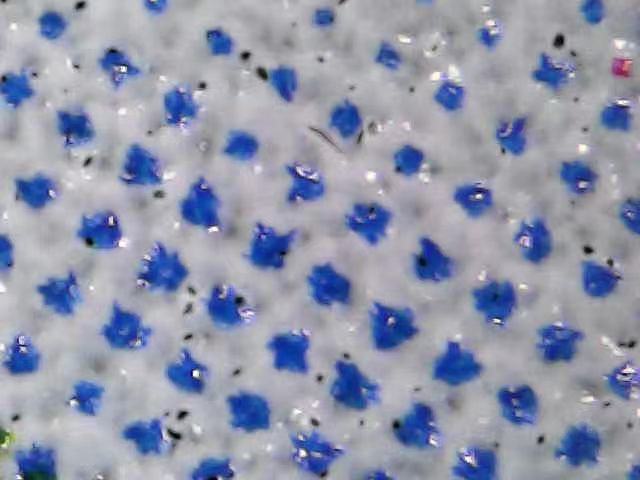

Stable Cyan Halftone
Consistent dot formation contributes to predictable color reproduction. Under magnification, well-formed cyan halftone dots demonstrate that stable ink transfer produces uniform tonal values across the printed surface — a critical requirement in process color metal decoration printing.

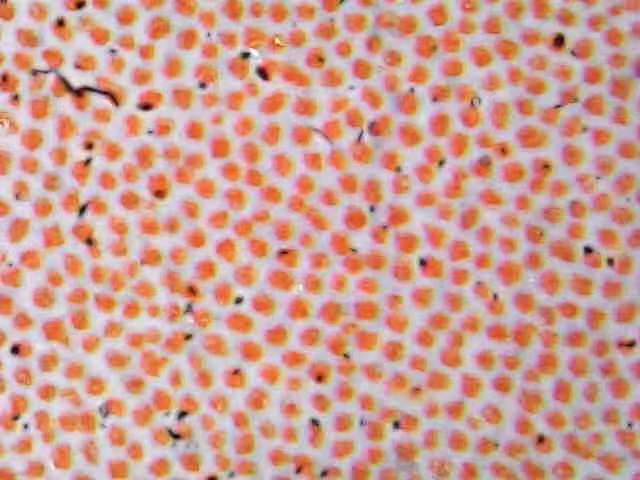

Magenta Dot Reproduction
Sharp dot edges indicate efficient ink transfer. When offset ink transfers correctly from blanket to substrate, dot geometry is preserved with clean boundaries and minimal physical spread. This level of dot consistency is essential for achieving accurate color mixing and predictable printing quality in tinplate printing applications.
Solid Area Coverage
Uniform ink coverage helps maintain color consistency throughout production. A solid area free from pinholes, mottle, or starvation is a direct indicator that the metal decorating ink is transferring with the efficiency and stability required for high-volume metal packaging printing.
These microscopic observations demonstrate how consistent ink transfer contributes to stable dot reproduction and solid coverage. Together with proper screening, press setup, and process control, efficient ink transfer is essential for achieving reliable print quality.
Given the evidence, printers in the metal packaging printing industry should expand their ink evaluation criteria well beyond simple color density readings. A comprehensive assessment of printing performance should include:
Dot consistency across tonal ranges
Measured dot gain at standard screen percentages
Ink transfer efficiency under production conditions and speeds
Solid area coverage and uniformity
Print stability over extended runs
Color repeatability across multiple print sessions and batches
These indicators provide a far more complete picture of how an offset printing ink will behave in real production environments than any single measurement taken in isolation. Printers who adopt this broader evaluation framework consistently make better ink decisions and experience fewer press-side quality problems.
Screening technology — whether AM screening or FM screening — sets the framework for how tonal values are constructed in metal decoration printing. But it is ink transfer that determines whether that framework produces excellent print quality or consistent disappointment.
Microscopic observation provides a practical and objective way to evaluate dot reproduction, solid coverage, and overall printing consistency. Stable halftone dots, sharp dot edges, and uniform solid coverage are not accidents — they are the result of optimized interaction between ink properties, blanket performance, plate quality, and press conditions for metal packaging printing applications.
At H&Z Metal Printing Technology, with over 32 years of experience in metal packaging printing and partnerships spanning more than 60 countries, we understand that genuine printing quality is built on stable, efficient, and repeatable ink behavior. From tinplate printing for food and beverage cans to aerosol cans, crown caps, and specialty metal packaging, we continuously evaluate printing performance through microscopic observation to ensure that every offset dot lands exactly where it should — every time.
Whether using AM or FM screening, excellent metal decoration printing ultimately depends on a stable and well-balanced printing system in which ink transfer plays a vital role.
